308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3090

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3090Original colors & callouts · Select to enlarge

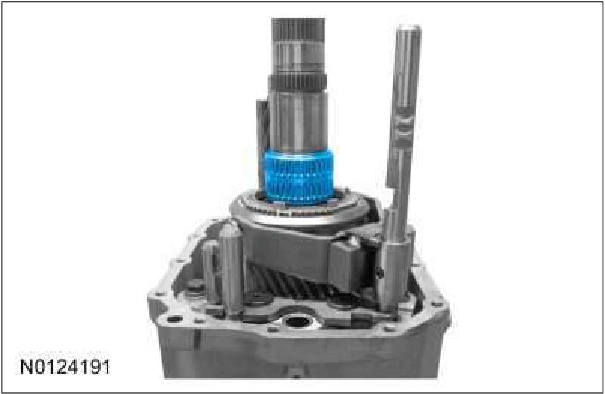

25. NOTE: Note the position of each synchronizer ring component before removal.

Remove the 1st gear synchronizer ring assembly.

Inspect all synchronizer ring components for wear or damage. Install new components as necessary.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3090Original colors & callouts · Select to enlarge

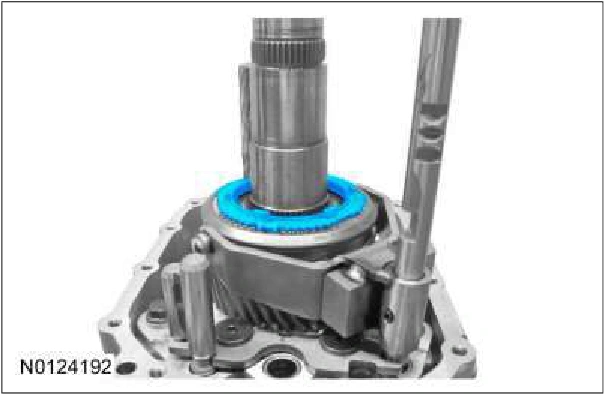

26. NOTE: Slide the synchronizer sleeve up while removing the pressure pieces.

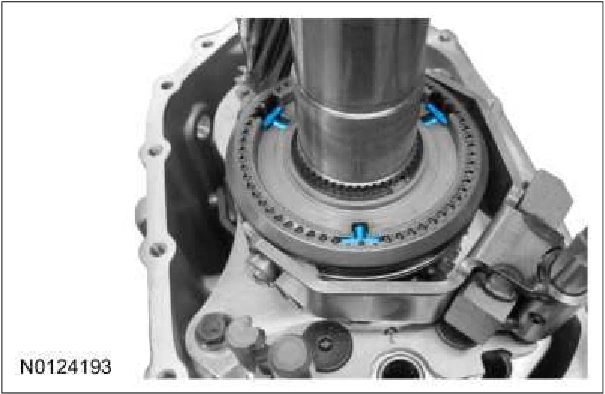

1. Remove the 3 pressure pieces.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3090Original colors & callouts · Select to enlarge

Source reference 3090
