transmission case can occur.

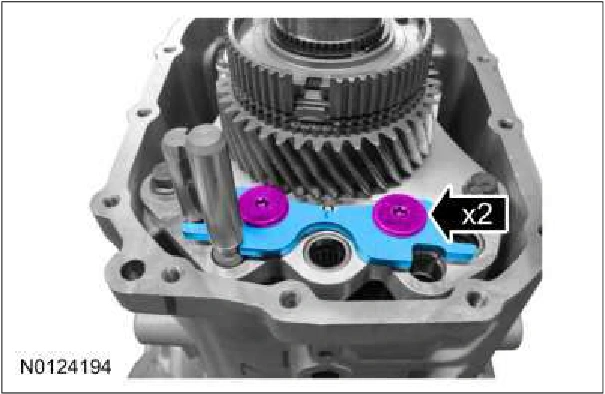

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3092Original colors & callouts · Select to enlarge

30. Remove the center support bolts.

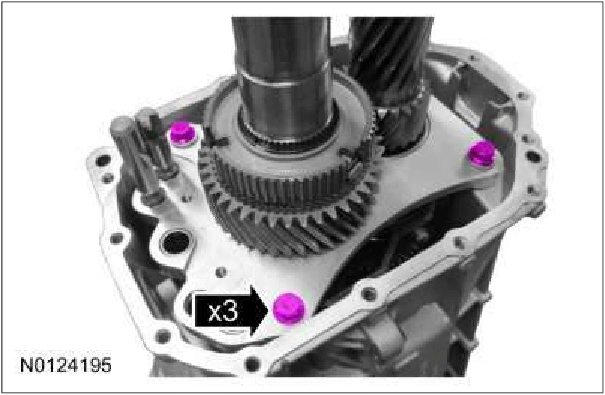

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3092Original colors & callouts · Select to enlarge

31. Remove the 1st/2nd synchronizer hub snap ring.

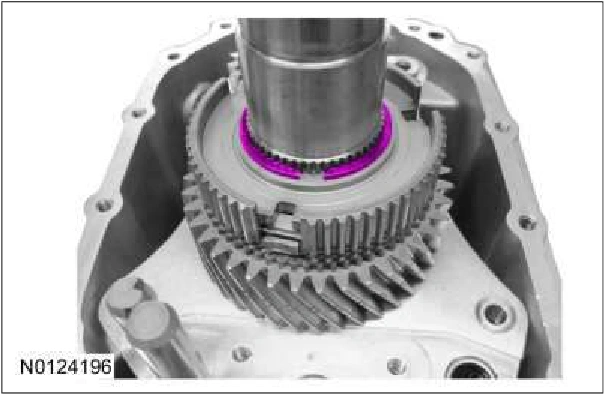

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3092Original colors & callouts · Select to enlarge

32. NOTICE: The center support must be pulled up evenly or damaged to the center support or

Using the push/puller set, step plate and special tool, under the center support pull off the center support, 2nd gear and the 1st/2nd synchronizer hub. Use Special Service Tool: 308-810 Remover, Syncro Gear Pack.

Source reference 3092
