bearing cages can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

2016 MustangMT82Reference 3,094 / 6,619HTML edition

← Chapter contents

35. Remove the center support.

Inspect the center support for wear or damage. Install a new center support as necessary.

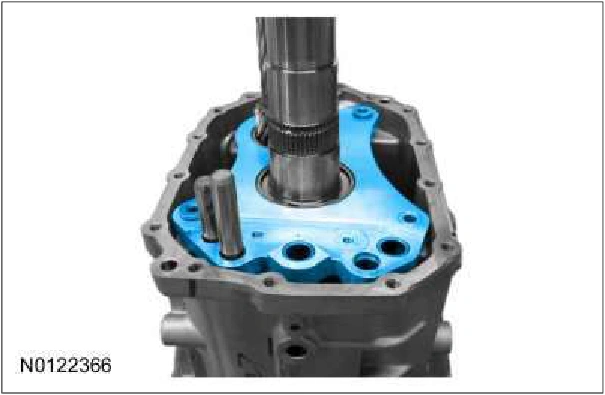

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3094Original colors & callouts · Select to enlarge

36. NOTICE: When removing the bearings, do not over expand the bearing cages or damage to the

bearing cages can occur.

Unlock the bearing cage tabs and slightly expand the bearing cages. Remove the center support bearings by sliding them up the shaft assemblies.

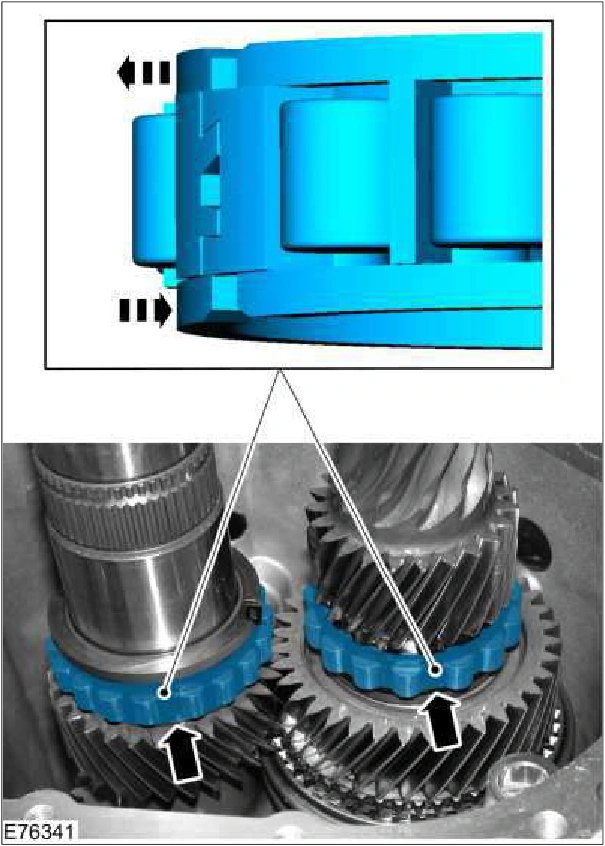

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3094Original colors & callouts · Select to enlarge

Source reference 3094
