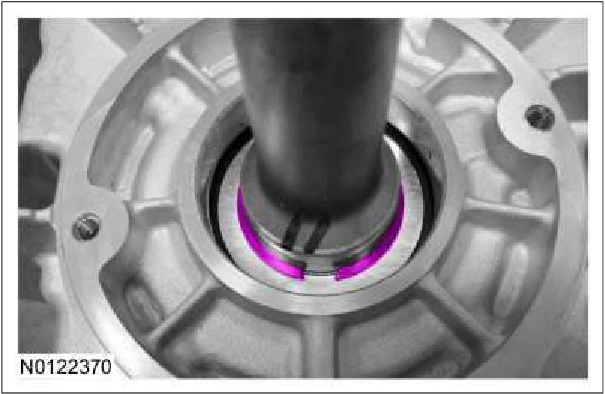

sharp edges. Failure to follow this instruction may result in serious personal injury.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3097Original colors & callouts · Select to enlarge

42. WARNING: Wear protective gloves when handling components or parts that have pointed or

NOTICE: Use an assistant when pressing out the input shaft, do not allow the input shaft to drop during removal.

NOTE: Removal of the input shaft is only required if damage is found to the input shaft, input shaft seal or input shaft bearing. If damage is not found, no not remove the input shaft.

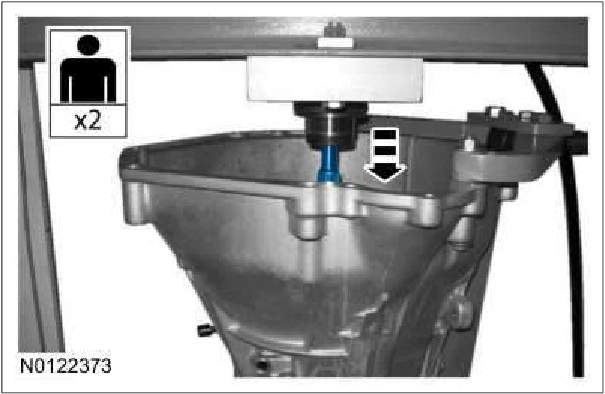

With an assistant, support the transmission case on flat surfaces of a hydraulic press. Using the hydraulic press, remove the input shaft. Use the General Equipment: Hydraulic Press

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3097Original colors & callouts · Select to enlarge

Source reference 3097
