308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3099

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3099Original colors & callouts · Select to enlarge

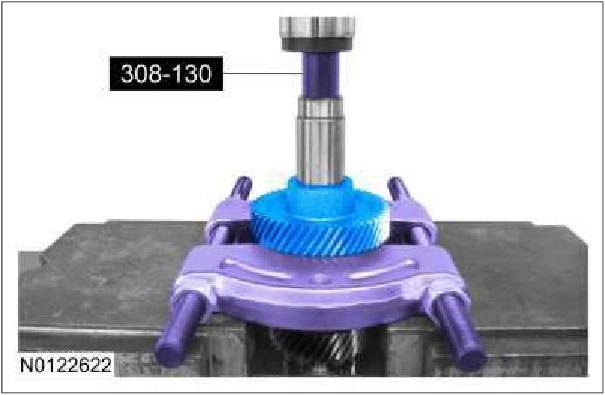

2. Using the special tool, bearing separator and a hydraulic press, remove the 6th gear. Inspect the 6th gear for wear or damage. Install a new gear as necessary. Use Special Service Tool: 308-130 (T87T-7025-DH) Installer, Shift Rail Needle Bearing. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3099Original colors & callouts · Select to enlarge

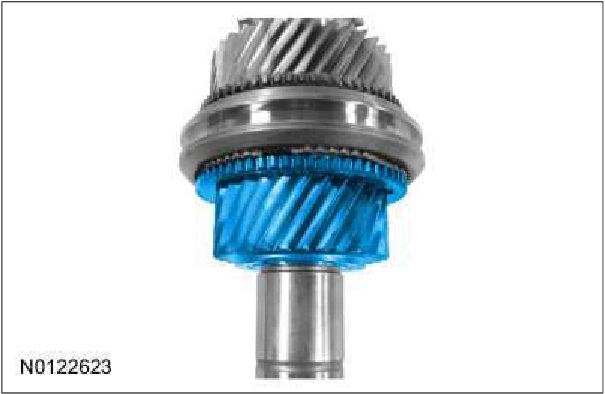

3. Remove the 3rd gear. Inspect the 3rd gear for wear or damage. Install a new gear as necessary.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3099Original colors & callouts · Select to enlarge

Source reference 3099

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
