NOTICE: The countershaft bolt must be removed prior to pressing out the countershaft or damage to the transmission case will occur.

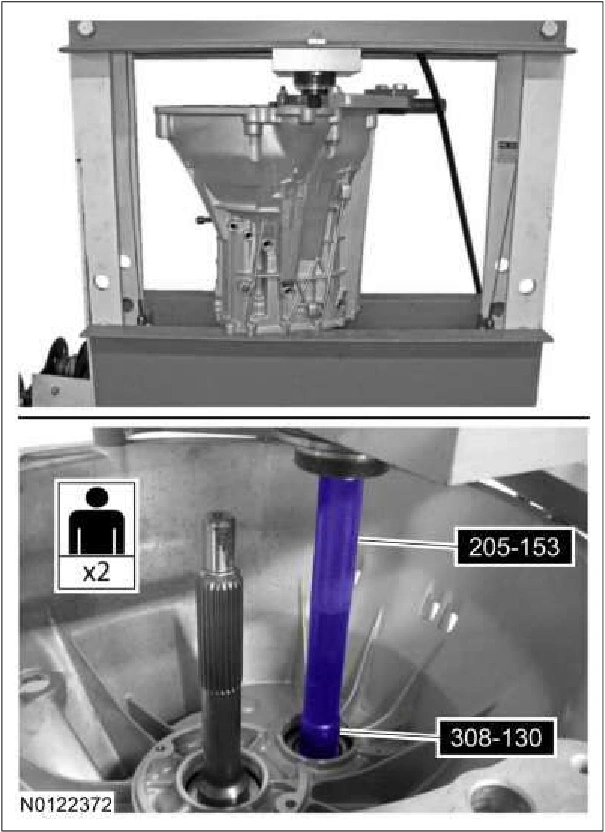

With an assistant, support the transmission case on flat surface of a hydraulic press. Using the special tools, press the countershaft out of the bearing and remove the countershaft and output shaft. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 308-130 (T87T-7025-DH) Installer, Shift Rail Needle Bearing. Use the General Equipment: Hydraulic Press

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3096Original colors & callouts · Select to enlarge

41. NOTE: Removal of the input shaft is only required if damage is found to the input shaft, input shaft seal or input shaft bearing. If damage is not found, no not remove the input shaft.

Remove the input shaft snap ring.
