sharp edges. Failure to follow this instruction may result in serious personal injury.

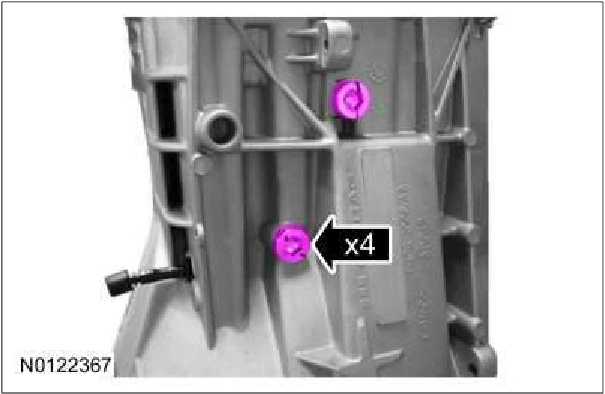

37. Remove the 2 LH and the 2 RH shift fork pivot bolts.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3095Original colors & callouts · Select to enlarge

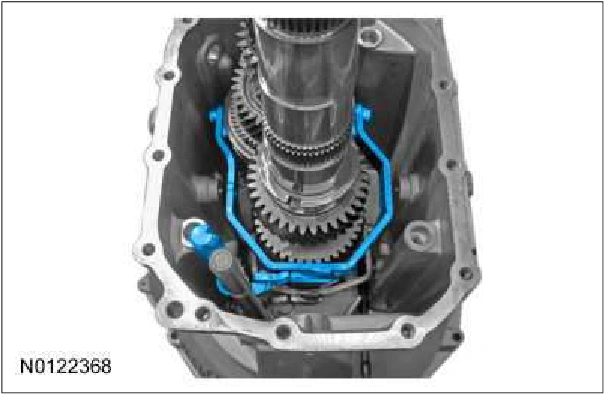

38. Remove the 3rd/4th shift rail and the 3rd/4th shift fork.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3095Original colors & callouts · Select to enlarge

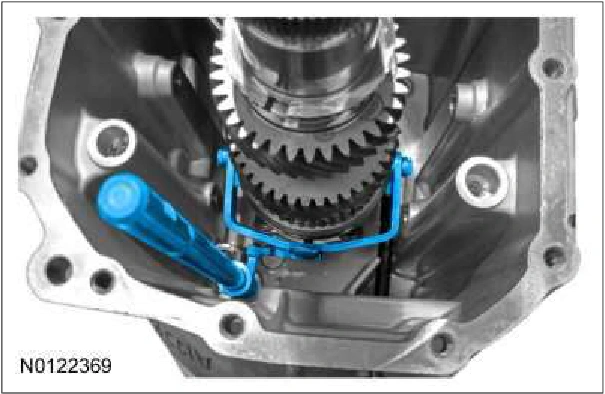

39. Remove the 5th/6th shift rail and the 5th/6th shift fork.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3095Original colors & callouts · Select to enlarge

40. WARNING: Wear protective gloves when handling components or parts that have pointed or

NOTICE: Use an assistant when pressing out the countershaft and output shaft, do not allow the shafts to bind during removal.

Source reference 3095
