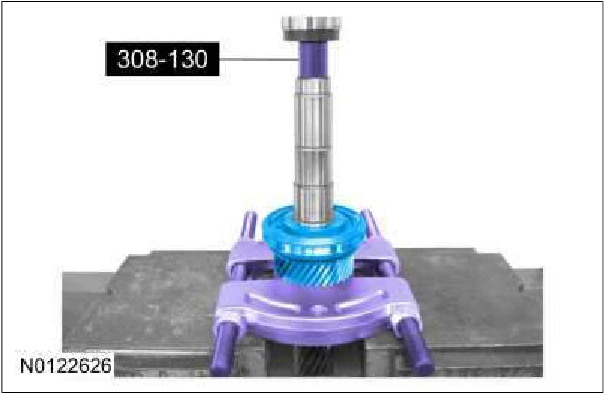

7. Using the special tool, the bearing separator and a hydraulic press, remove the 4th gear and the 3rd/4th gear synchronizer assembly. Use Special Service Tool: 308-130 (T87T-7025-DH) Installer, Shift Rail Needle Bearing. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press
8. NOTE: Prior to removing the synchronizer rings, note the position of each synchronizer ring.
Remove the 4th gear from the 4th gear synchronizer ring assembly. Remove the 4th gear synchronizer ring assembly from the 3rd/4th gear synchronizer assembly.
Inspect the 4th gear for wear or damage. Install a new gear as necessary. Inspect the 3rd/4th gear synchronizer assembly for wear or damage. Install a new 3rd/4th gear synchronizer assembly as necessary. Inspect the synchronizer ring components for wear or damage. Install new components as necessary.
