Oil Pan — 2016 workshop reference 328

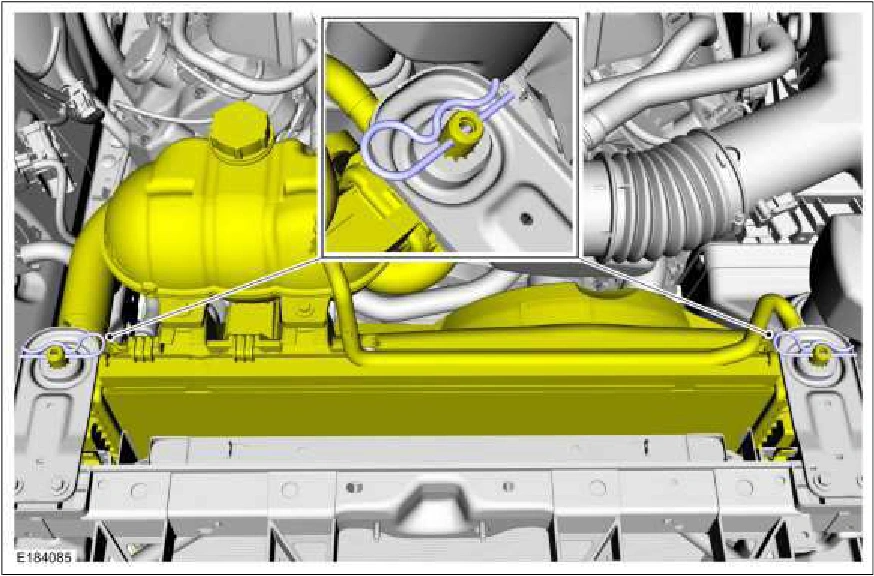

Oil Pan — original illustration 1, reference 328Original colors & callouts · Select to enlarge

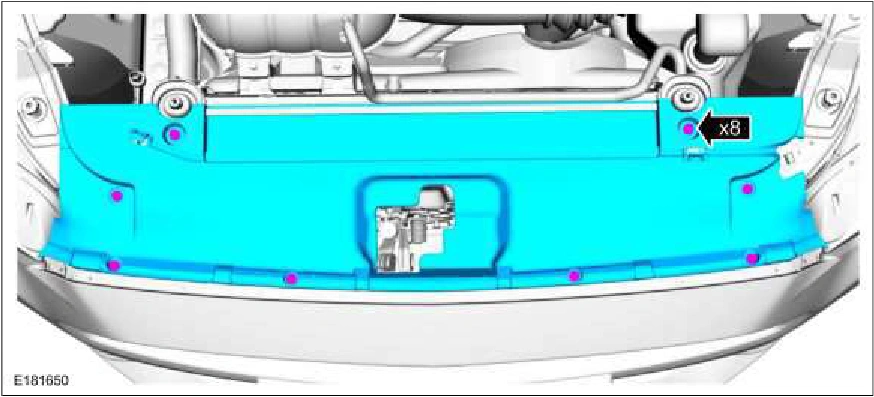

33. Install the radiator top shield and the retainers.

Oil Pan — original illustration 2, reference 328Original colors & callouts · Select to enlarge

34. Install the oil level indicator.
