2016 workshop · Engine

Oil Pan

303-01C Engine - 5.0L

2016 Mustang5.0LReference 329 / 6,619HTML edition
← Chapter contentsProcedure contents

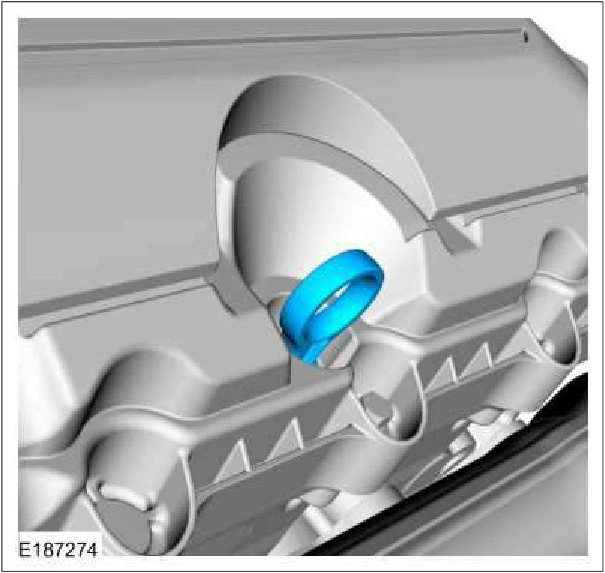

Oil Pan — original illustration 1, reference 329Original colors & callouts · Select to enlarge

35. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

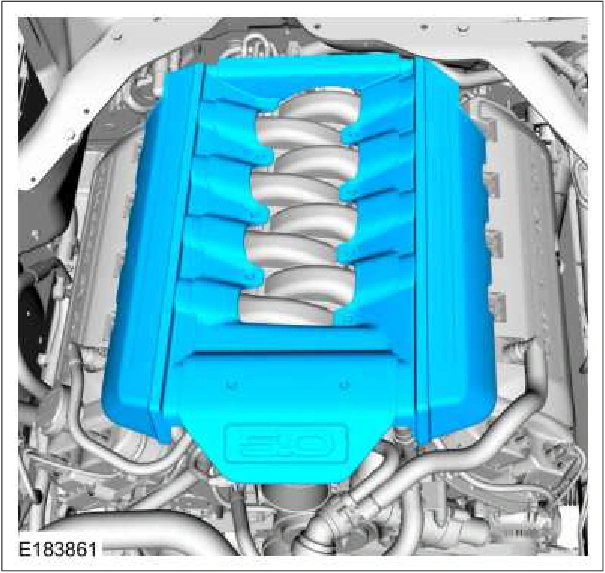

Install the engine appearance cover.

Oil Pan — original illustration 2, reference 329Original colors & callouts · Select to enlarge

36. If equipped, install the strut tower cross brace and nuts.

Torque : 41 lb.ft (55 Nm) Attach the wiring harness retainer.
