2016 workshop · Engine

Oil Pan

303-01C Engine - 5.0L

2016 Mustang5.0LReference 331 / 6,619HTML edition
← Chapter contentsProcedure contents
Oil Pan — original illustration 1, reference 331Original colors & callouts · Select to enlarge

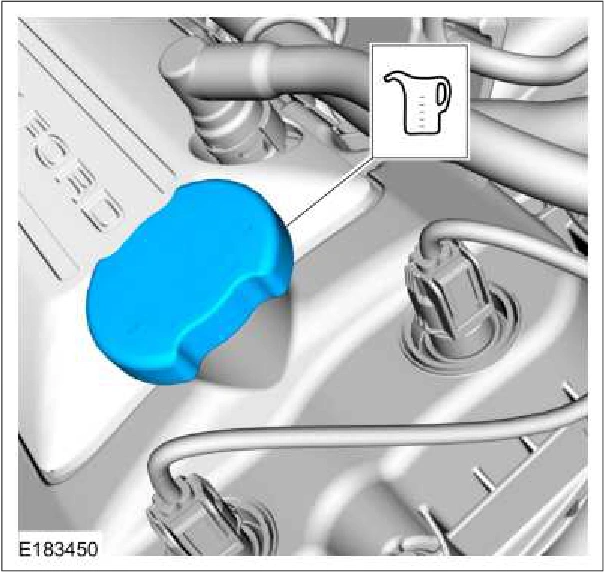

39. Fill the engine with clean engine oil. Refer to: Specifications (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Specifications). Material : Engine Oil - 5W20 (WSS-M2C948-B)

Oil Pan — original illustration 2, reference 331Original colors & callouts · Select to enlarge

40. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
