Oil Pump

303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS) 2016 Mustang

Removal and Installation Procedure revision date: 02/10/2015

Base Part Number: 6621

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Remove the timing chains. Refer to: Timing Chain (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

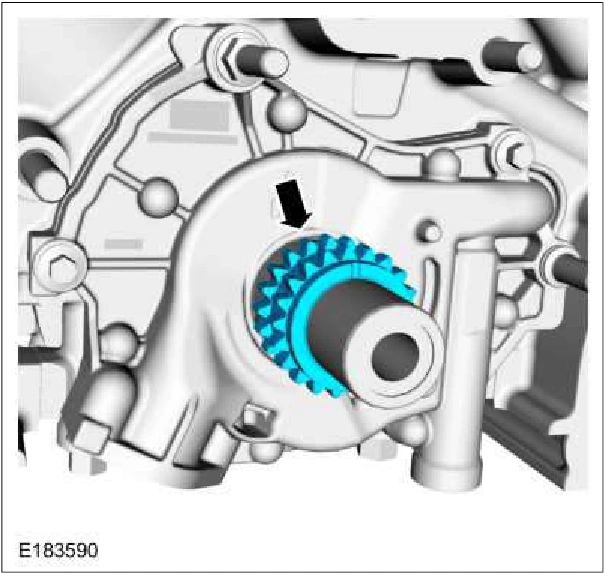

3. Remove the crankshaft sprocket.

Oil Pump — original illustration 1, reference 333Original colors & callouts · Select to enlarge

4. Remove the oil pan. Refer to: Oil Pan (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

5. Remove the bolts, stud bolts and the oil pump.

Source reference 333
