Oil Pressure Switch

303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS) 2016 Mustang

Removal and Installation Procedure revision date: 03/27/2015

Materials

Name	Specification
Thread Sealant with PTFE TA-24-B	WSK-M2G350-A2

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Disconnect the EOP switch electrical connector.

NOTE: If the oil pressure switch is to be reused, apply thread sealant.

Remove the EOP switch. Material : Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2) Torque : Stage 1: 124 lb.in (14 Nm) Stage 2: 180°

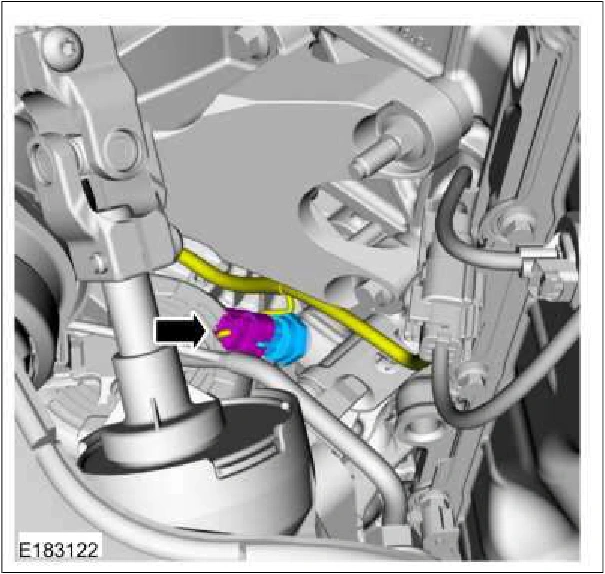

Oil Pressure Switch — original illustration 1, reference 332Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 332
