2016 workshop · Engine

Oil Pump

303-01C Engine - 5.0L

2016 Mustang5.0LReference 335 / 6,619HTML edition
← Chapter contentsProcedure contents

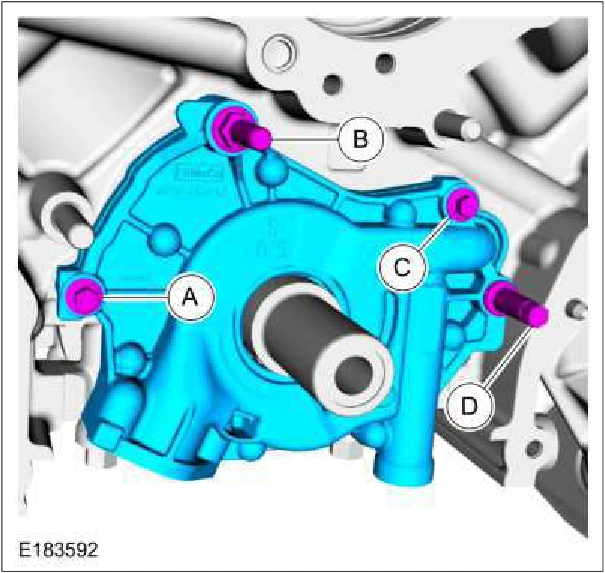

Oil Pump — original illustration 1, reference 335Original colors & callouts · Select to enlarge

2. Install the oil pan. Refer to: Oil Pan (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Install the crankshaft sprocket.

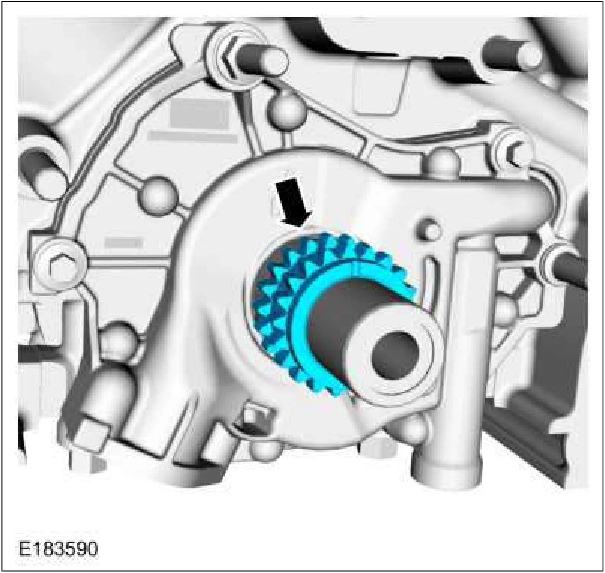

Oil Pump — original illustration 2, reference 335Original colors & callouts · Select to enlarge

4. Install the timing chains. Refer to: Timing Chain (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

Copyright © 2016 Ford Motor Company

Source reference 335
