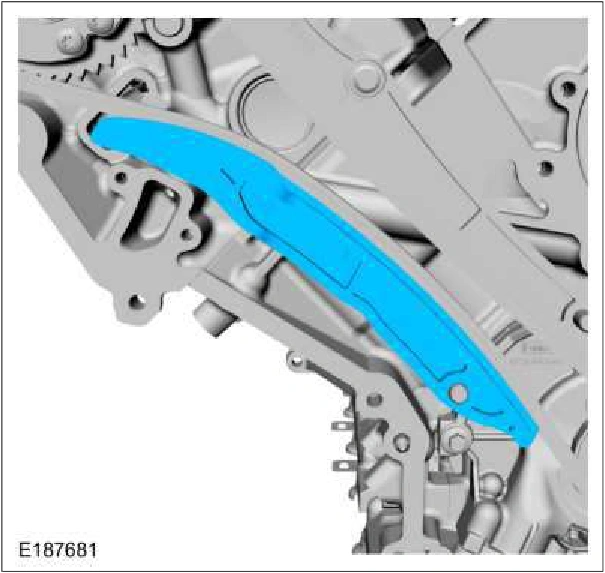

6. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after removing the RH timing chain guide.

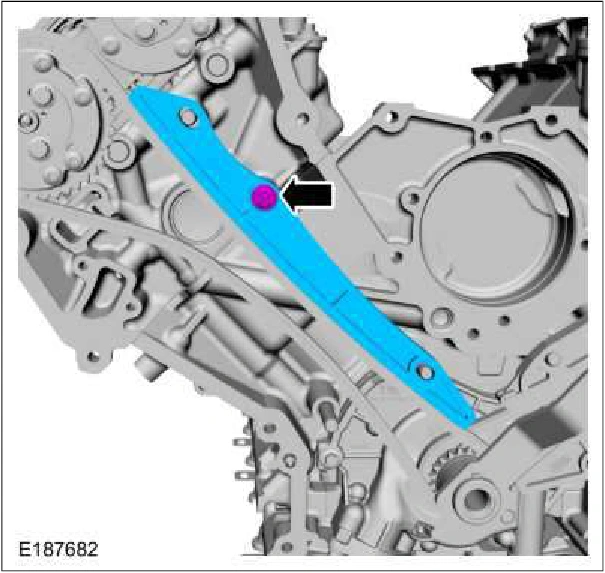

Remove the bolt and the RH timing chain guide.

Timing Chain — original illustration 2, reference 338Original colors & callouts · Select to enlarge

7. Remove the RH timing chain.
