Timing Chain — 2016 workshop reference 337

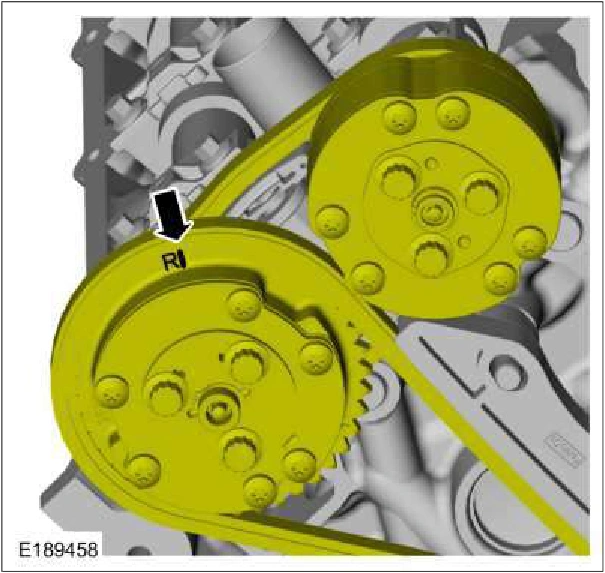

Timing Chain — original illustration 1, reference 337Original colors & callouts · Select to enlarge

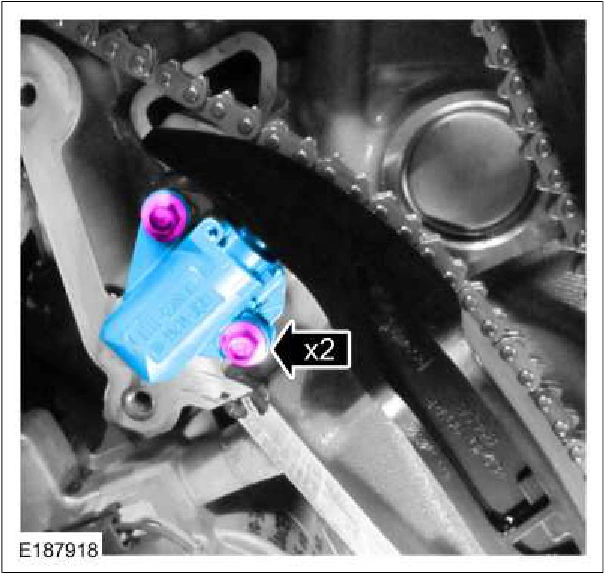

4. Remove the bolts and the RH primary timing chain tensioner.

Timing Chain — original illustration 2, reference 337Original colors & callouts · Select to enlarge

5. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the RH timing chain tensioner arm. Return the crankshaft keyway to the 12 o'clock position after removing the RH timing chain tensioner arm.

Remove the RH timing chain tensioner arm.

Source reference 337
