Timing Chain — 2016 workshop reference 340

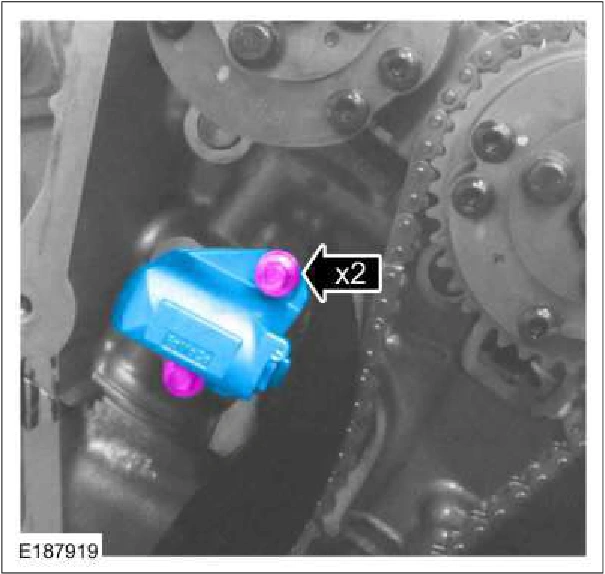

Timing Chain — original illustration 1, reference 340Original colors & callouts · Select to enlarge

10. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the LH timing chain tensioner arm. Return the crankshaft keyway to the 5 o'clock position after removing the LH timing chain tensioner arm.

Remove the LH timing chain tensioner arm.

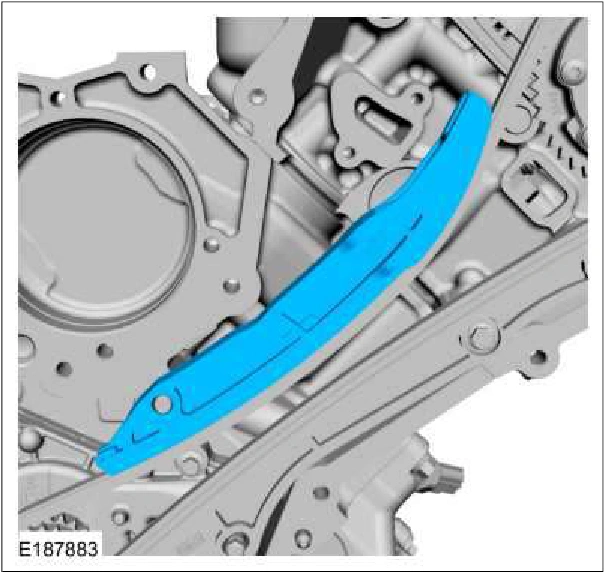

Timing Chain — original illustration 2, reference 340Original colors & callouts · Select to enlarge

11. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the LH timing chain guide. Return the crankshaft keyway to the 5 o'clock position after removing the LH timing chain guide.

Remove the bolt and the LH timing chain guide.

Source reference 340
