Timing Chain — 2016 workshop reference 343

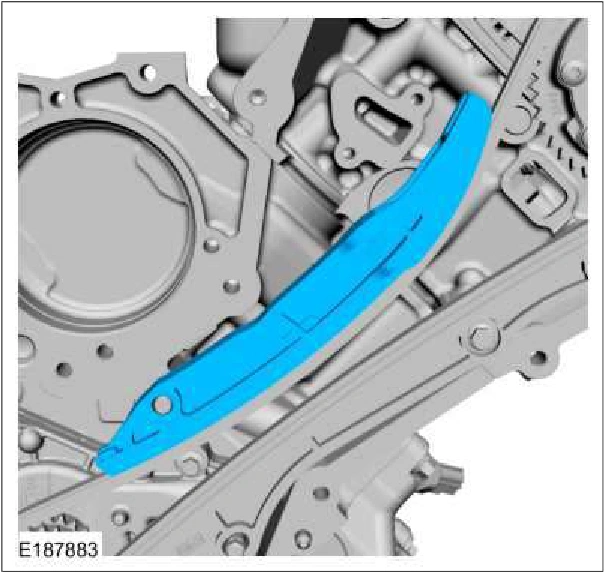

Timing Chain — original illustration 1, reference 343Original colors & callouts · Select to enlarge

Step 4

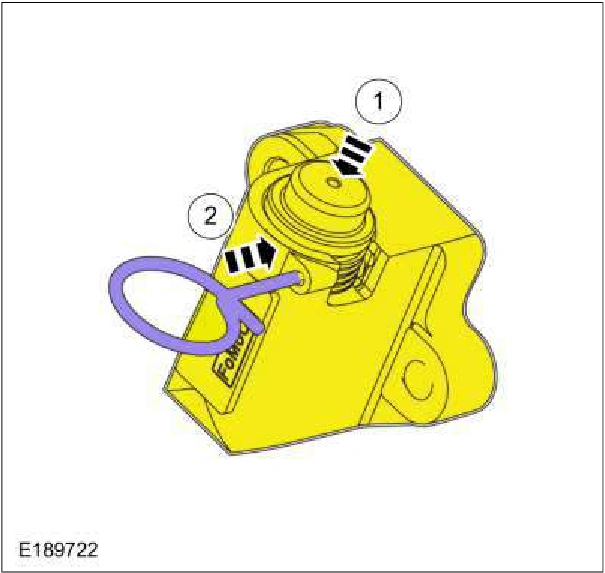

1. Compress the primary timing chain tensioner plunger, using an edge of a vise.

2. Install a suitable pin into the hole of the tensioner housing to hold the plunger in place during installation.

Timing Chain — original illustration 2, reference 343Original colors & callouts · Select to enlarge

Step 5

1. Install the LH primary timing chain tensioner and bolts. Torque : 89 lb.in (10 Nm)

2. Remove the holding pin from the tensioner.

Source reference 343

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
