2016 workshop · Engine

Timing Chain

303-01C Engine - 5.0L

2016 Mustang5.0LReference 344 / 6,619HTML edition
← Chapter contentsProcedure contents

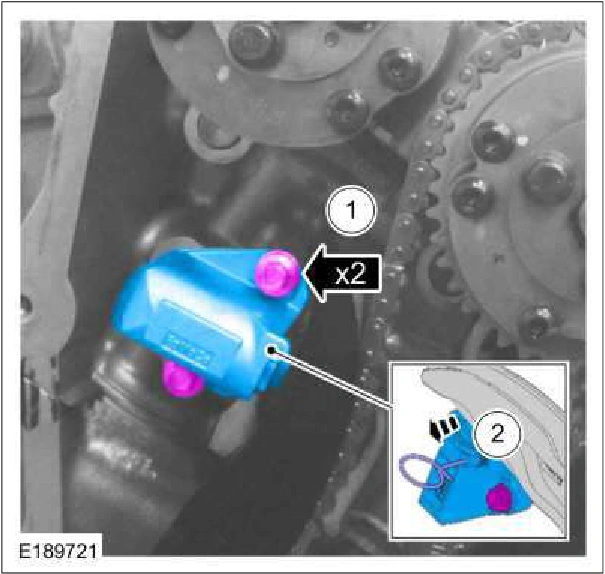

Timing Chain — original illustration 1, reference 344Original colors & callouts · Select to enlarge

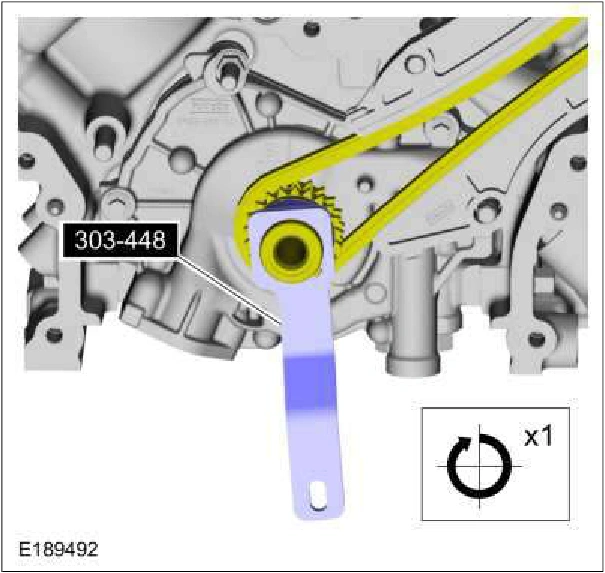

6. Using the special tool, rotate the crankshaft clockwise one complete revolution. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.

Timing Chain — original illustration 2, reference 344Original colors & callouts · Select to enlarge

7. Using the special tool, rotate the crankshaft clockwise until the keyway is at the 12 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.
