Timing Chain — 2016 workshop reference 345

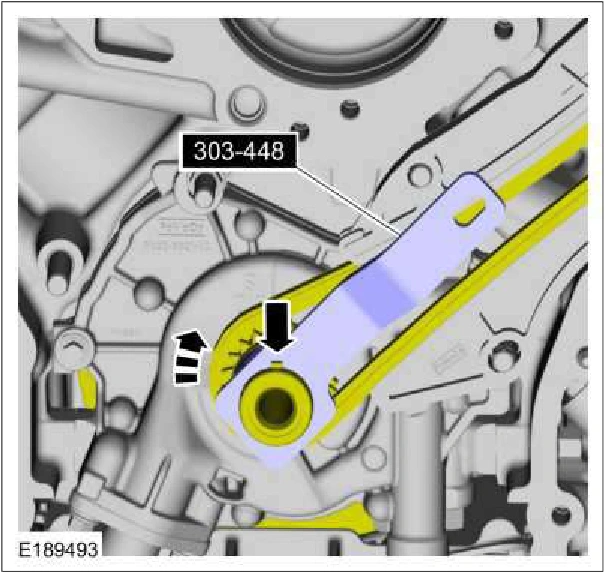

Timing Chain — original illustration 1, reference 345Original colors & callouts · Select to enlarge

RH and LH timing chains

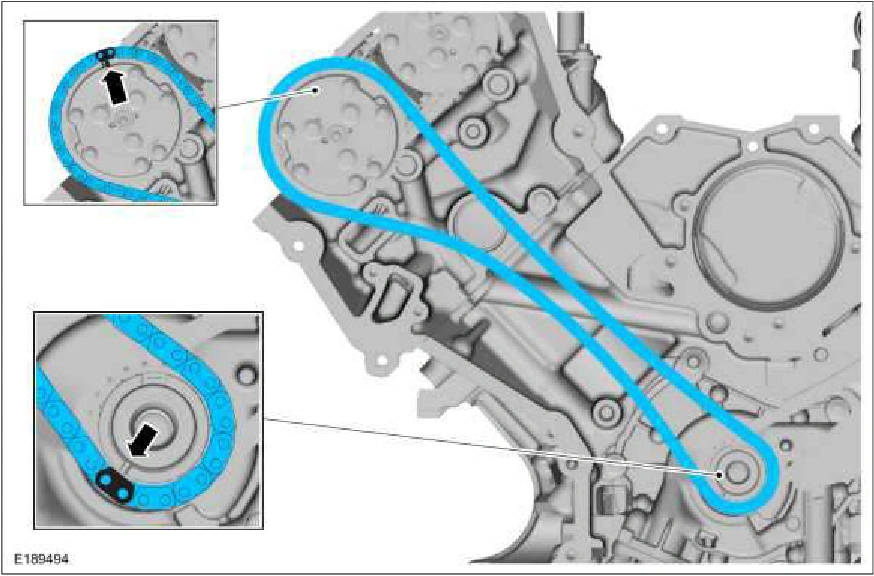

8. Install the RH timing chain. Align the colored link on the timing chain with the timing mark on the RH VCT assembly. Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.

Timing Chain — original illustration 2, reference 345Original colors & callouts · Select to enlarge

9. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain guide.

Install the RH timing chain guide and bolt. Torque : 89 lb.in (10 Nm)

Source reference 345

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
