Timing Chain — 2016 workshop reference 342

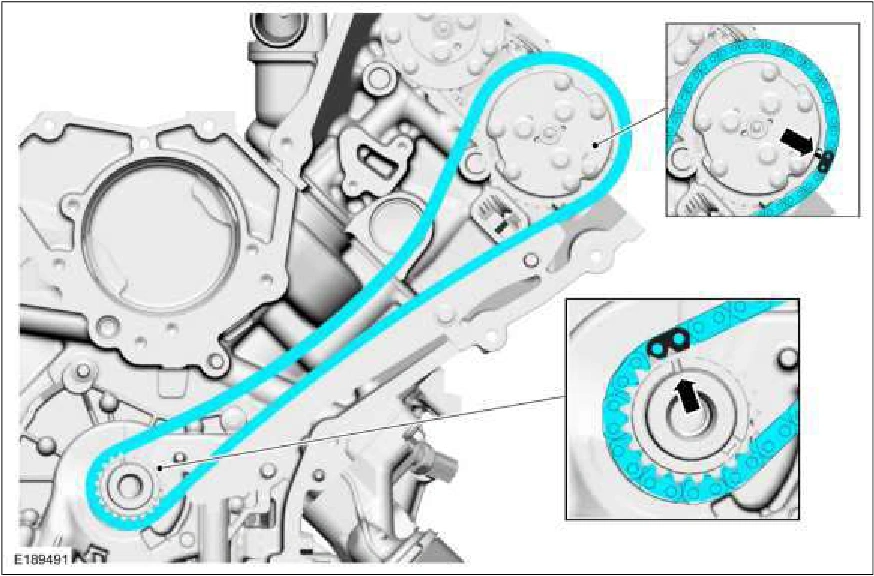

Timing Chain — original illustration 1, reference 342Original colors & callouts · Select to enlarge

2. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain guide. Return the crankshaft keyway to the 5 o'clock position after installing the LH timing chain guide.

Install the LH timing chain guide and bolt. Torque : 89 lb.in (10 Nm)

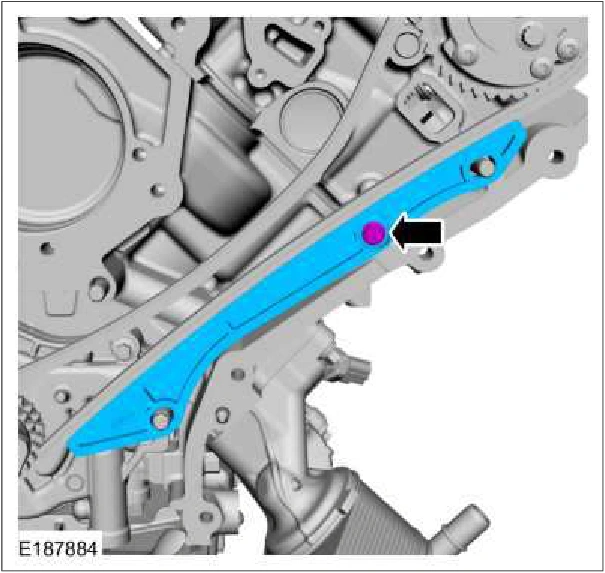

Timing Chain — original illustration 2, reference 342Original colors & callouts · Select to enlarge

3. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain arm. Return the crankshaft keyway to the 5 o'clock position after installing the LH timing chain arm.

Install the LH timing chain tensioner arm.

Source reference 342
