Refrigerant Oil Adding — 2016 workshop reference 3623

Refrigerant Oil Adding — original illustration 1, reference 3623Original colors & callouts · Select to enlarge

15. Press the suction damper to allow proper ventilation while draining the oil from the old A/C compressor.

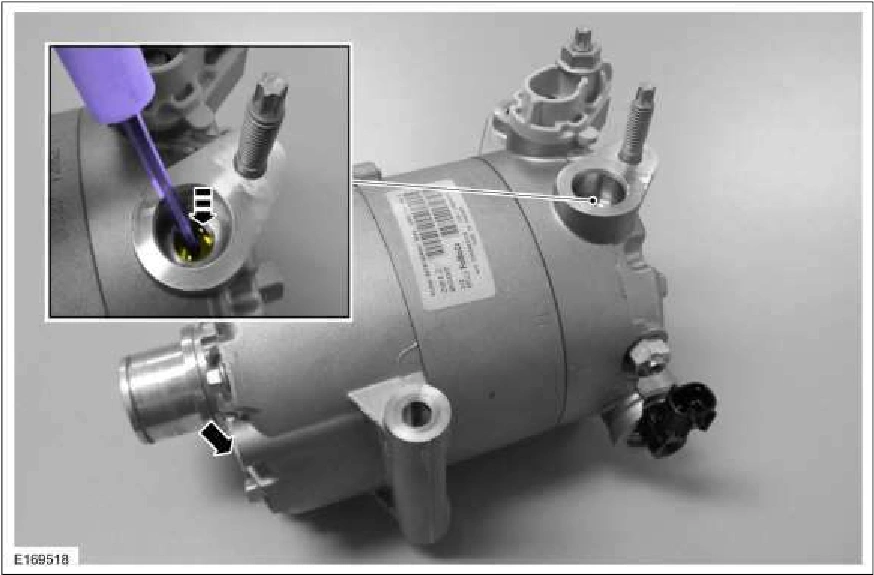

Refrigerant Oil Adding — original illustration 2, reference 3623Original colors & callouts · Select to enlarge

16. Drain the oil from the old A/C compressor, collecting oil in a clean measuring device.

Source reference 3623

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
