17. Install the oil drain bolt in the old A/C compressor.

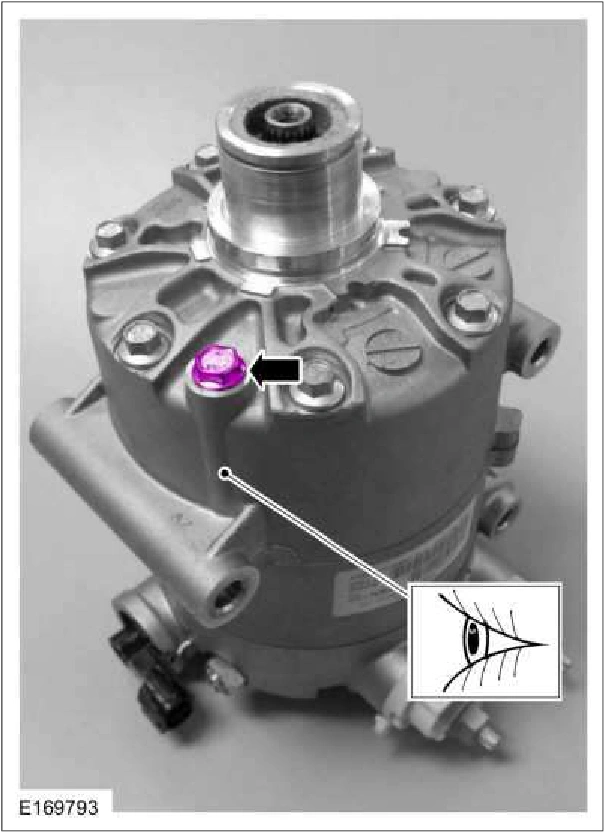

Refrigerant Oil Adding — original illustration 1, reference 3624Original colors & callouts · Select to enlarge

18. Remove the A/C clutch and A/C clutch field coil from the new A/C compressor. Refer to Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil procedure in Group 412.

19. Remove the oil drain bolt from the new A/C compressor.
