Refrigerant Oil Adding — 2016 workshop reference 3625

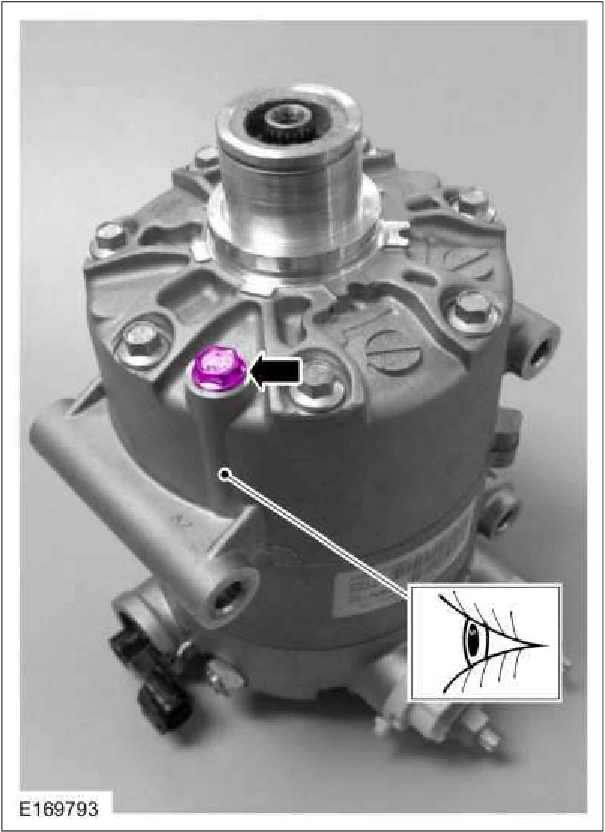

Refrigerant Oil Adding — original illustration 1, reference 3625Original colors & callouts · Select to enlarge

20. Remove the suction port seal cap.

21. Press the suction damper to allow proper ventilation while draining the oil from the new A/C compressor.

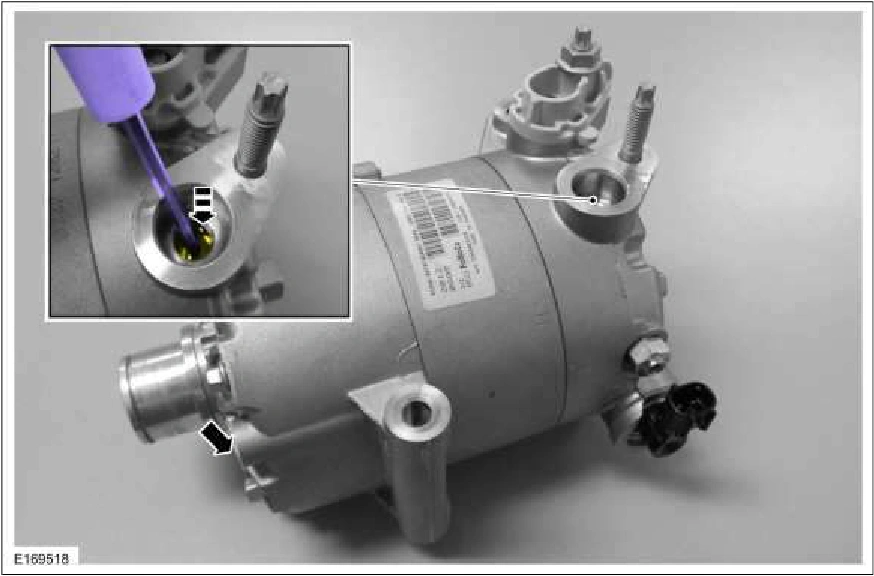

Refrigerant Oil Adding — original illustration 2, reference 3625Original colors & callouts · Select to enlarge

Source reference 3625

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
