22. Drain the oil from the new A/C compressor, collecting oil in a clean measuring device.
23. Measure the amount of oil drained for the old A/C compressor and add the same amount of new oil to the new A/C compressor.

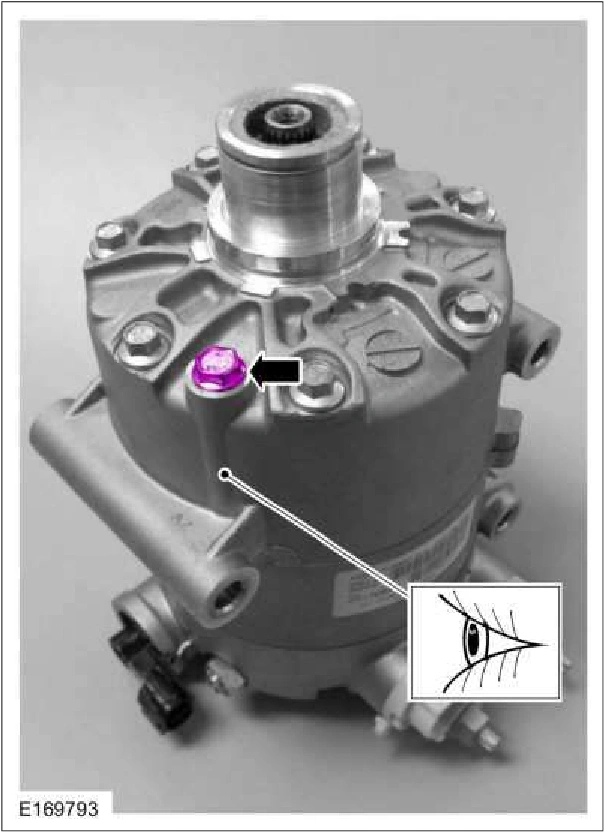

24. Install the oil drain bolt in the new A/C compressor. Torque : 80 lb.in (9 Nm)
25. Install the suction port seal cap.
26. Install the A/C clutch and A/C clutch field coil on the new A/C compressor. Refer to Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil procedure in Group 412.
Type 3
27. NOTICE: Make sure the old A/C compressor shaft is rotating and not just the A/C pulley.
Remove the oil drain bolt and rotate the old A/C compressor clutch 6 to 8 revolutions while collecting oil in a clean measuring device.
