Instrument Panel Cluster (IPC)

413-01 Instrumentation, Message Center and Warning Chimes 2016 Mustang

Removal and Installation Procedure revision date: 08/14/2015

Base Part Number: 10849

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

2. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel (501-12 Instrument Panel and Console, Removal and Installation).

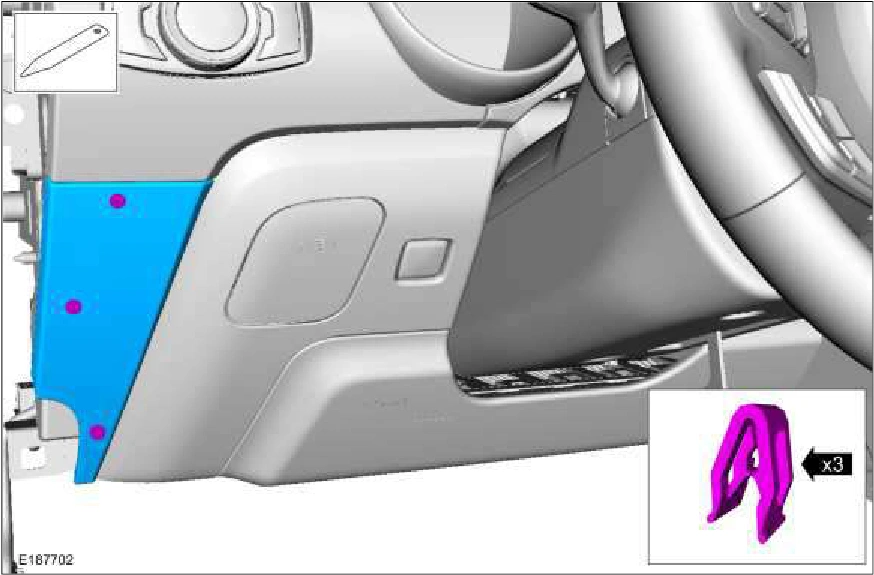

3. Release the clips and remove LH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Instrument Panel Cluster (IPC) — original illustration 1, reference 3914Original colors & callouts · Select to enlarge

4. Remove the bolts, release the clips and remove the lighting switch panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Source reference 3914
