Instrument Panel Cluster (IPC) — 2016 workshop reference 3916

Instrument Panel Cluster (IPC) — original illustration 1, reference 3916Original colors & callouts · Select to enlarge

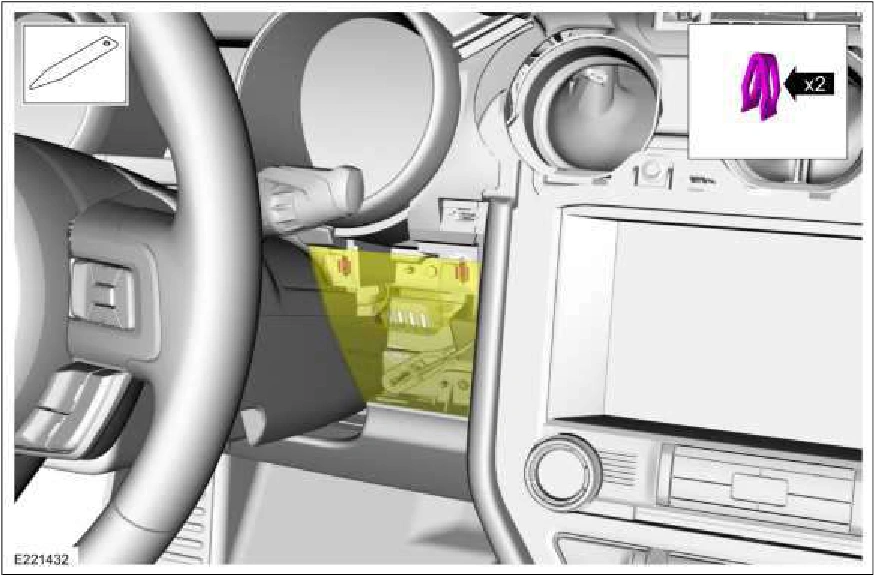

7. Remove the bolts, release the clips and remove the IPC trim panel. Detach the gap hider from the upper steering column trim cover. Torque : 22 lb.in (2.5 Nm)

Instrument Panel Cluster (IPC) — original illustration 2, reference 3916Original colors & callouts · Select to enlarge

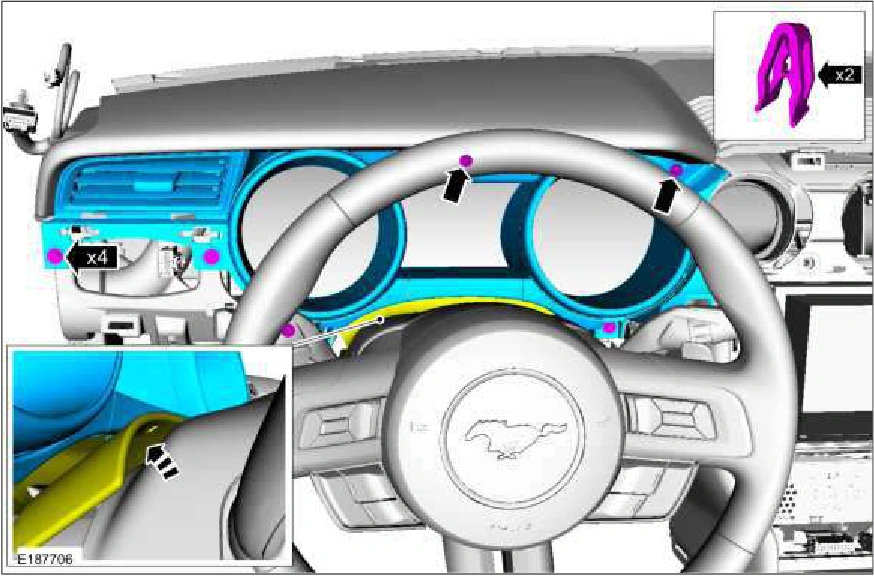

8. Remove the bolts, release the clips and remove the IPC. Disconnect the electrical connector. Torque : 16 lb.ft (22 Nm)
