Instrument Panel Cluster (IPC) — 2016 workshop reference 3915

Instrument Panel Cluster (IPC) — original illustration 1, reference 3915Original colors & callouts · Select to enlarge

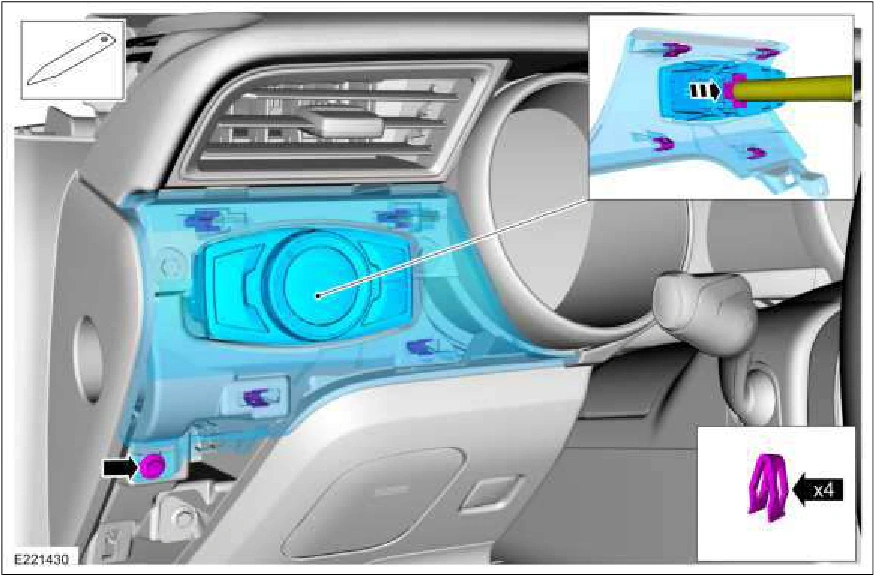

5. Remove the bolt, release the clips and remove the LH finish panel. Disconnect the electrical connector. Torque : 27 lb.in (3 Nm)

Instrument Panel Cluster (IPC) — original illustration 2, reference 3915Original colors & callouts · Select to enlarge

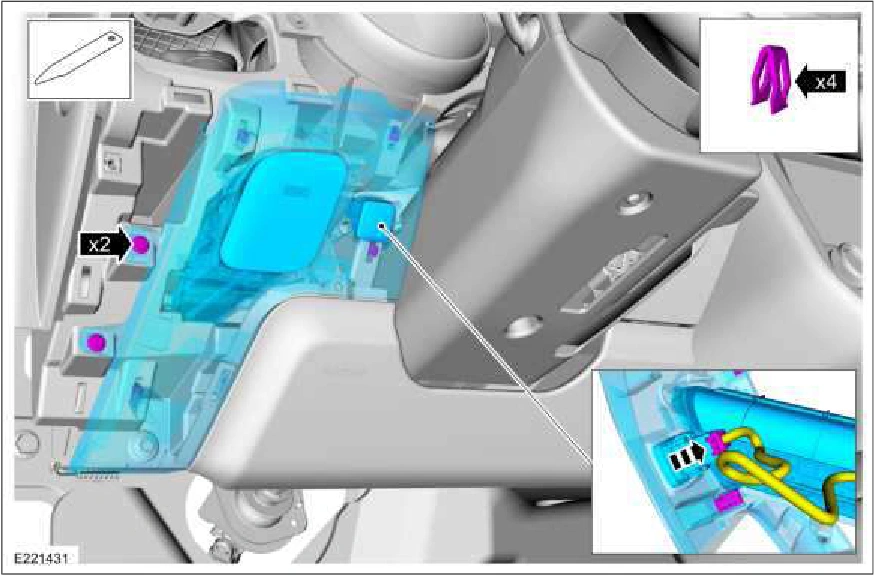

6. Release the clips and position aside the lower instrument panel cover. Use the General Equipment: Interior Trim Remover

Source reference 3915

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
