Information Center Module (ICM)

413-01 Instrumentation, Message Center and Warning Chimes 2016 Mustang

Removal and Installation Procedure revision date: 05/11/2015

Removal

1. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel (501-12 Instrument Panel and Console, Removal and Installation).

2. Remove the screws and the ICM.

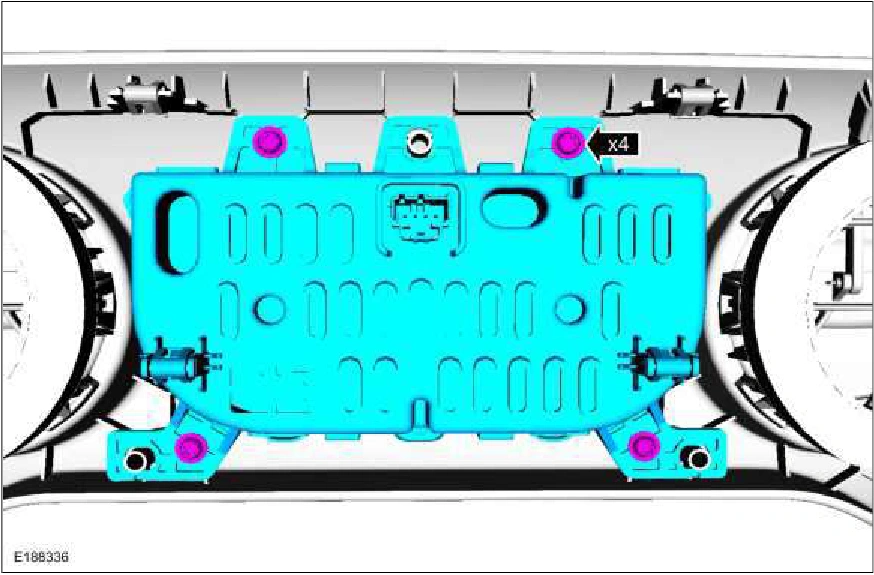

Information Center Module (ICM) — original illustration 1, reference 3913Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3913
