Charging System - 5.0L 32V Ti-VCT — 2016 workshop reference 4060

Ignition OFF. Disconnect and inspect all BCM connectors. Repair:

corrosion (install new connector or terminals – clean module pins) damaged or bent pins – install new terminals/pins pushed-out pins – install new pins as necessary

Reconnect the BCM connectors. Make sure they seat and latch correctly. Operate the system and determine if the concern is still present.

Is the concern still present?

Yes	CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, Click here to access Guided Routine (BCM).
No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test

and FOLLOW the TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, Click here to access Guided Routine (BCM).

The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Component Test - Generator Clutch

1. Remove the generator. REFER to: Generator - 5.0L 32V Ti-VCT (414-02 Generator and Regulator, Removal and Installation).

Charging System - 5.0L 32V Ti-VCT — original illustration 1, reference 4060Original colors & callouts · Select to enlarge

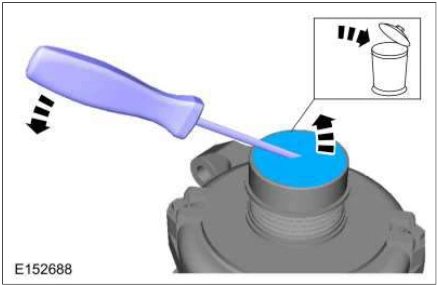

2. Using a small screwdriver or similar tool, insert the tool through the rubber button on the center of the pulley cap and pry off the cap. Discard the cap. A new cap must be installed if the clutch is OK.

Charging System - 5.0L 32V Ti-VCT — original illustration 2, reference 4060Original colors & callouts · Select to enlarge

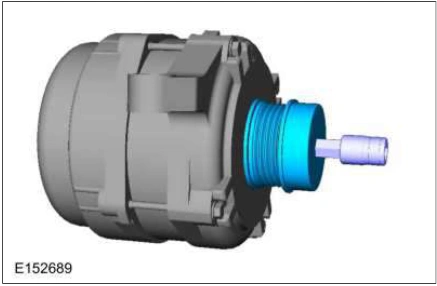

3. Using a 17 mm hex tool bit (such as a Snap-on® SAM17E2 or equivalent) and socket wrench, insert the 17 mm hex tool bit into the end of the clutch shaft.

4. While holding the clutch pulley firmly by hand, turn the clutch shaft clockwise. The shaft should rotate smooth and freely. If the shaft rotation is rough or seized, install a new generator clutch. REFER to: Generator Pulley (414-02 Generator and Regulator, Removal and Installation).

5. While holding the clutch pulley firmly by hand, turn the clutch shaft counterclockwise. There should be some resistance (a spring feel). If the shaft rotates freely, install a new generator clutch. REFER to: Generator Pulley (414-02 Generator and Regulator, Removal and Installation).
