6-38 Reference Values

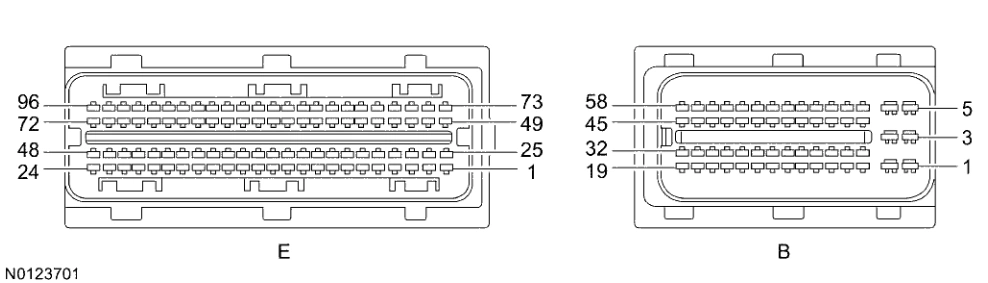

2.0L GDI Focus
2.0L GDI Focus
154 Pin PCM
Typical Diagnostic Reference Values
Inputs Component/PID Measured/PID Values Units Only Measured/PID KOEO Hot Idle 48 KM/H (30 89 KM/H (55 MPH) MPH) AAT AAT Sensor 13 (55.4) 12 (53.6) 14 (57.2) 13 (55.4) DEG C (DEG F) AAT_V AAT Sensor 1.47 1.50 1.45 1.48 VOLTS APP APP Sensor 0 0 10 20.5 % APP1 APP Sensor 0.76/14.9 0.76/14.9 1.08/21.56 1.42/28.23 VOLTS/% APP2 APP Sensor 0.38/7.45 0.38/7.45 0.55/16.86 0.71/12.94 VOLTS/% APP_ PID 0 0.06 0 0 DEG MAXDIFF APP_MODE PID NO PEDAL NO PEDAL PART PEDAL PART PEDAL NO PEDAL/ PART PEDAL B+ PID 12.7 13-14 13-14 13-14 VOLTS BARO PID 3.93/98.93 3.92/98.93 3.93/98.93 3.92/98.93 VOLTS/kPa (14.35)/156.11/ (14.35)/156.11/ (14.35)/156.11/ (14.35)/156.11/ (PSI)/Hz/ 397.44 397.44 397.44 397.44 in-H O 2 BOO1 BPP Switch OFF ON (E) OFF OFF ON/OFF BOO2 BPP Switch OFF ON (E) OFF OFF ON/OFF BRKOVR_ PID 0 0 0 0 NUMERIC ACTION VALUE BRKOVRD_ PID 30 30 30 30 NUMERIC POSS VALUE DECHOKE PID YES NO NO NO YES/NO DIST_ PID 154.4 (95.96) 135.9 (84.47) 111.9 (69.56) 113.4 (70.49) km (Miles) BRKOVERD ECT ECT Sensor 108 (226.4) 101 (213.8) 92 (197.6) 94 (201.2) DEG C (DEG F) ETC_TRIM PID 0.15 (J) 0.14 (J) 0.01 (J) 0.01 (J) DEG FLI Fuel Level Sensor 100 100 100 100 % FLP Fuel Pressure 516.34 (74.89) 425.88 (61.77) 416.85 (60.46) 452.36 (65.61) kPa (PSI) Sensor
Original table alignment retained · Scroll horizontally if needed
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
