303-01C Engine Cooling - 5.0L — 2016 workshop reference 617

303-01C Engine Cooling - 5.0L — original illustration 1, reference 617Original colors & callouts · Select to enlarge

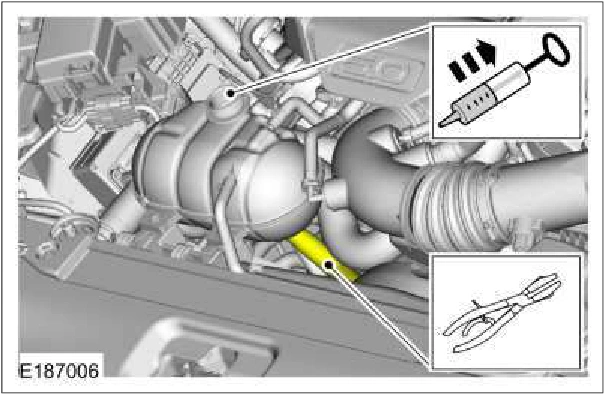

2. Using general tools clamp the lower degas bottle hose and syphon the coolant from the degas bottle. Use the General Equipment: Fluid Suction Gun Use the General Equipment: Locking Pliers

303-01C Engine Cooling - 5.0L — original illustration 2, reference 617Original colors & callouts · Select to enlarge

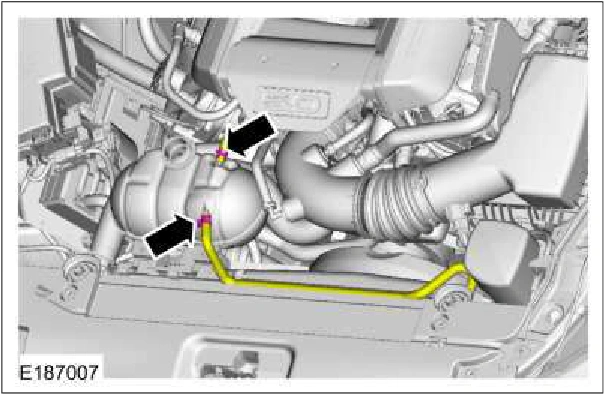

3. Release the clamps, disconnect the upper degas bottle coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

303-01C Engine Cooling - 5.0L — original illustration 3, reference 617Original colors & callouts · Select to enlarge

4. Remove the bolts. Torque : 80 lb.in (9 Nm)

Source reference 617
