303-01C Engine Cooling - 5.0L — 2016 workshop reference 620

303-01C Engine Cooling - 5.0L — original illustration 1, reference 620Original colors & callouts · Select to enlarge

5. Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

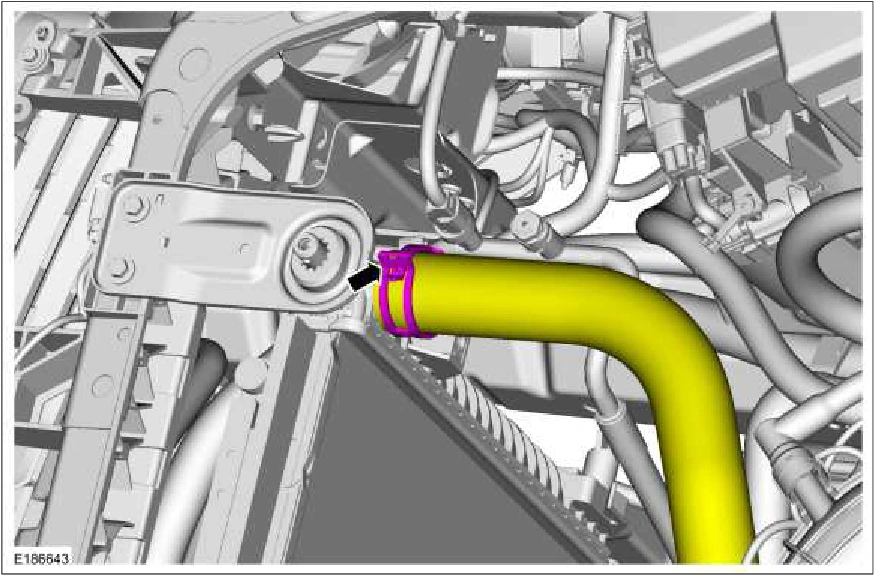

303-01C Engine Cooling - 5.0L — original illustration 2, reference 620Original colors & callouts · Select to enlarge

6. Release the clamp and disconnect the upper coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
