303-01C Engine Cooling - 5.0L — 2016 workshop reference 622

303-01C Engine Cooling - 5.0L — original illustration 1, reference 622Original colors & callouts · Select to enlarge

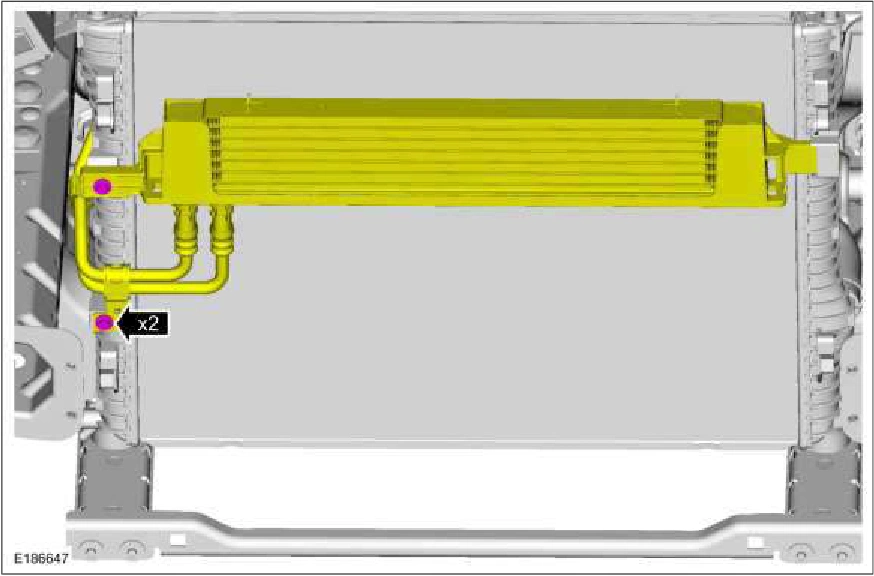

9. NOTE: If equipped.

NOTE: Front bumper removed for clarity.

Remove the bolts and position aside the transmission fluid cooler. Torque : 53 lb.in (6 Nm)

303-01C Engine Cooling - 5.0L — original illustration 2, reference 622Original colors & callouts · Select to enlarge

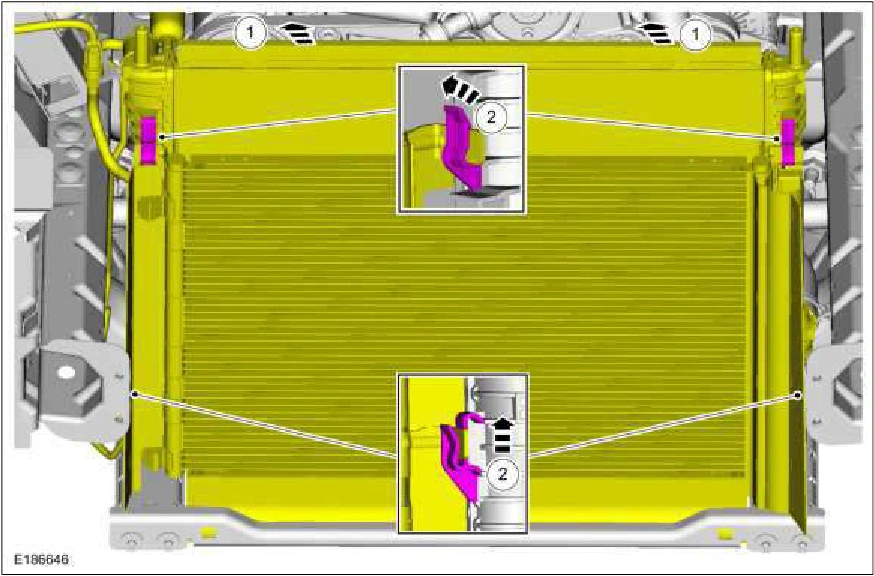

10. NOTE: Front bumper removed for clarity.

Remove the radiator.
