303-01C Engine Cooling - 5.0L — 2016 workshop reference 621

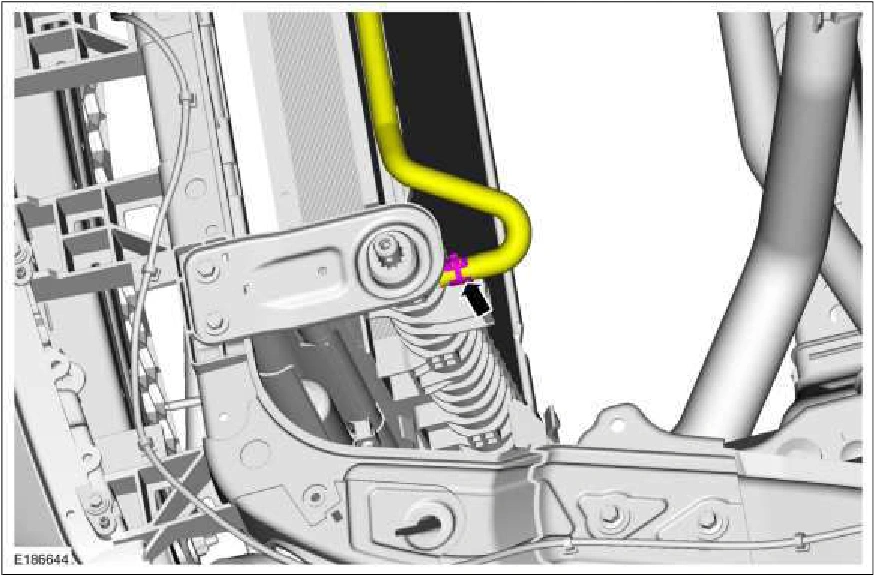

303-01C Engine Cooling - 5.0L — original illustration 1, reference 621Original colors & callouts · Select to enlarge

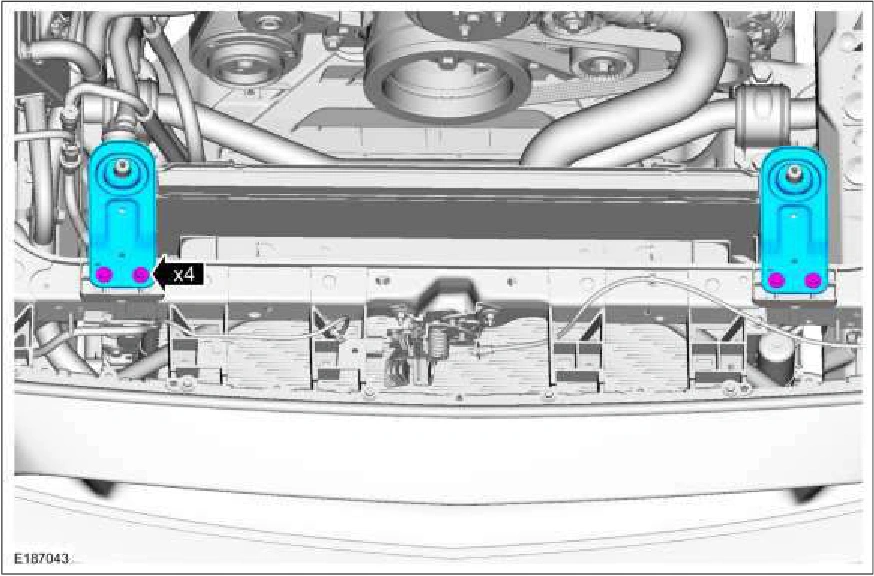

7. Remove the bolts and the upper radiator support brackets. Torque : 97 lb.in (11 Nm)

303-01C Engine Cooling - 5.0L — original illustration 2, reference 621Original colors & callouts · Select to enlarge

8. NOTE: Front bumper removed for clarity.

1. Position the radiator towards the engine.

2. Release the upper tabs and position the A/C condenser aside.
