Installation

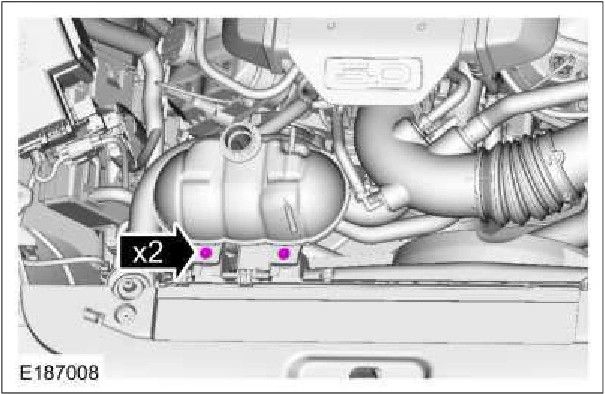

303-01C Engine Cooling - 5.0L — original illustration 1, reference 618Original colors & callouts · Select to enlarge

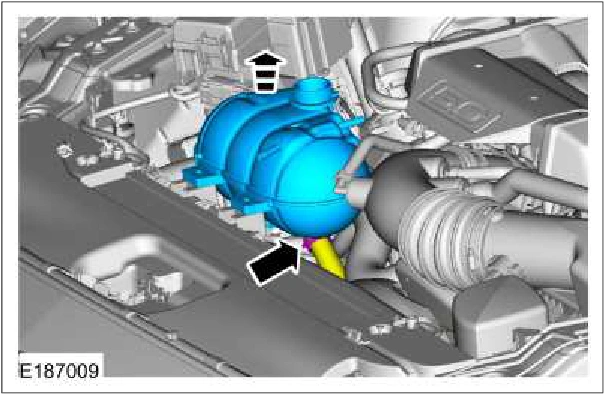

5. Position the degas bottle and disconnect the lower coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

303-01C Engine Cooling - 5.0L — original illustration 2, reference 618Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.

2. Fill the degas bottle with the recommended coolant mixture and fill level. Material : Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D) Material : Motorcraft® Orange Antifreeze/Coolant Prediluted (U.S.) / VC-3DIL-B (U.S.) (WSS-M97B44-D2)

Source reference 618
