Terminal not properly seated

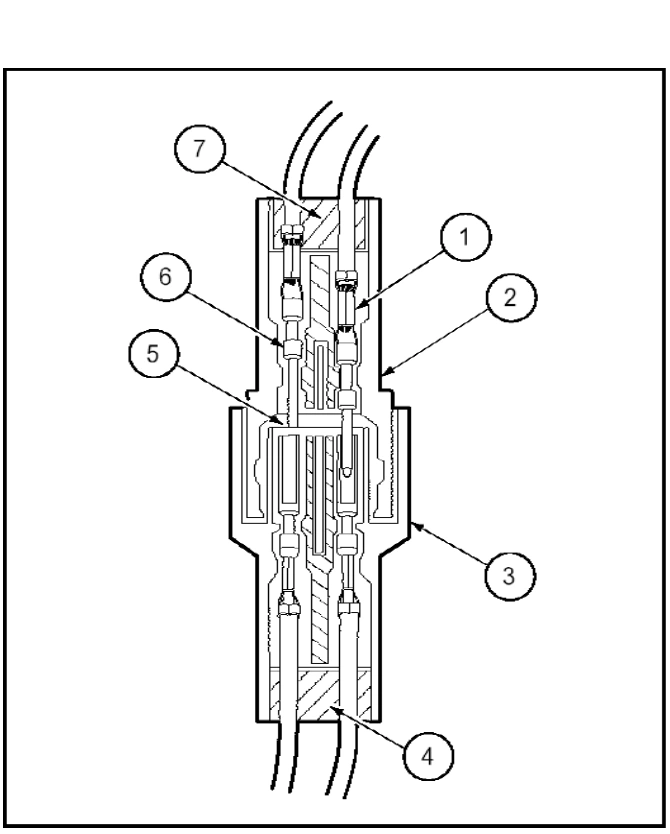

Terminal seating cross section with callouts 1–7 · source reference 6231Original colors & callouts · Select to enlarge

1 = Locked terminal

2 = Male half

3 = Female half

4 = Seal

5 = Intermittent contact

6 = Unlocked terminal (Hidden by wire seal)

7 = Seal

Check for unlocked terminals by pulling each wire at the end of the connector.
