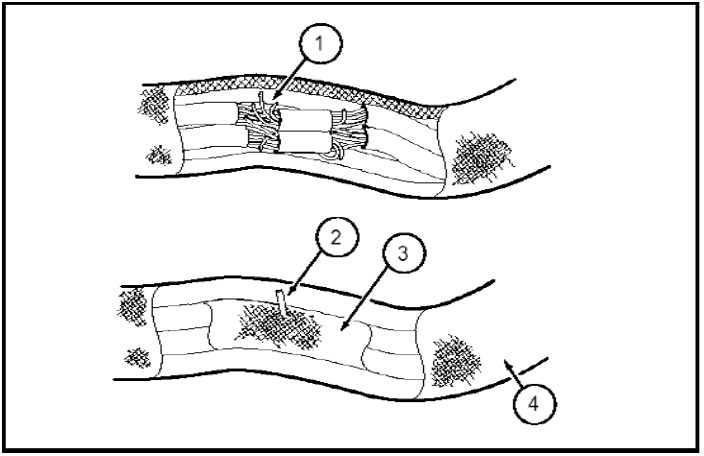

Electrical short within the harness
Splice tape removed
1 = Intermittent short
Splice covered
2 = Wire strand
3 = Splice tape
4 = Harness tape

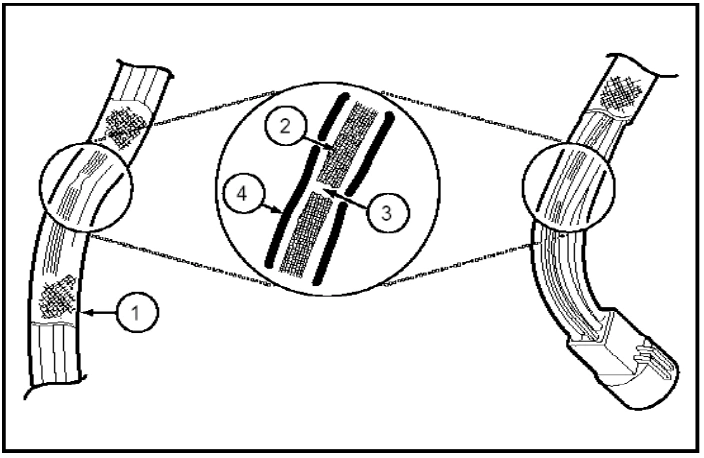

Broken wire strands in harness
1 = Wiring harness tape
2 = Wiring strand
3 = Broken strands intermittent signal
4 = Circuit insulation
Remove the tape and flex/feel each circuit for a reduction in diameter at break.
