Deformed female terminals and electrical short inside the harness

Wiring

2016 MustangReference 6,233 / 6,619HTML edition
← Chapter contents

Transcribed from scanned source material. Text and illustration placement checked against the supplied source.

Deformed (enlarged) female terminals

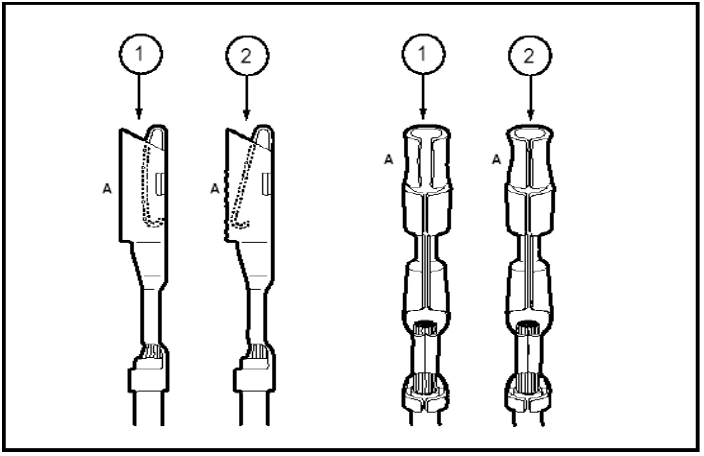

Enlarged and normal female terminals, location A · source reference 6233Original colors & callouts · Select to enlarge

1 = Enlarged

2 = Normal

Any probe entering the terminal may enlarge the contact spring opening creating an intermittent signal. Insert the correct mating terminal (Location A) from the service kit and feel for a loose fit.

Electrical short inside the harness

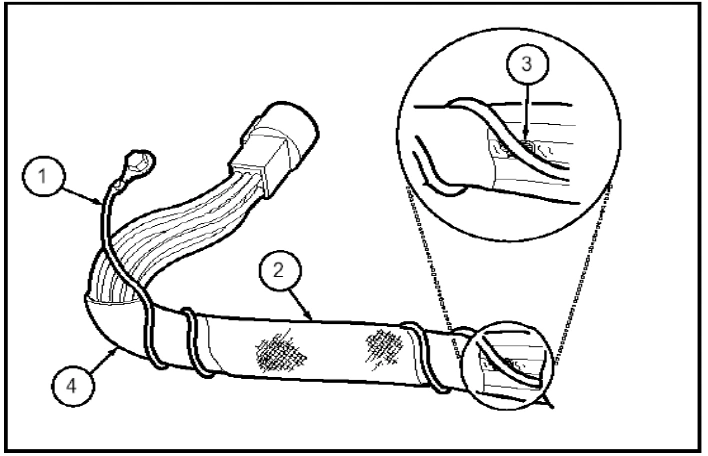

Electrical short inside the harness, callouts 1–4 · source reference 6233Original colors & callouts · Select to enlarge

1 = Solder coated wire to ground

2 = Harness protective tape

3 = Intermittent short — Solder coated wire pierced through the insulation of another circuit.

4 = Grounding foil

Source reference 6233
