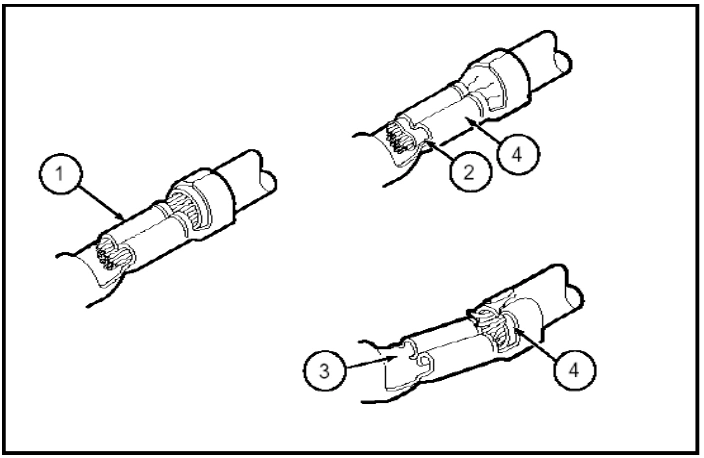

Defective insulation stripping

Defective insulation stripping examples, callouts 1–4 · source reference 6232Original colors & callouts · Select to enlarge

1 = Proper crimp

2 = Insulation not removed

3 = Wire strands missing

4 = Intermittent signals through pierced insulation

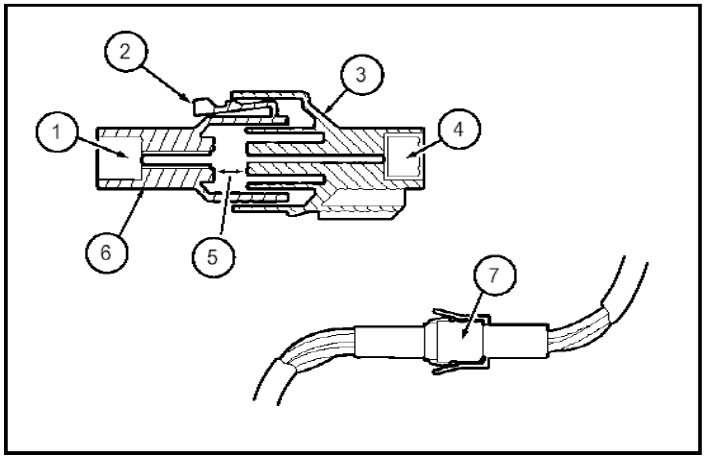

Partially mated connectors

Partially mated connectors, callouts 1–7 · source reference 6232Original colors & callouts · Select to enlarge

1 = Seal

2 = Displaced tab

3 = Female half

4 = Seal

5 = Intermittent contact

6 = Male half

7 = Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.
