Starting System — 2016 workshop reference 676

Positive Lead	Measurement / Action	Negative Lead
BJB starter relay pin 3 Starting System — original illustration 1, reference 676Original colors & callouts · Select to enlarge		BJB starter relay pin 5 Starting System — original illustration 2, reference 676Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

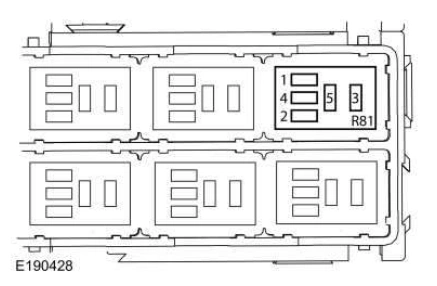

BJB starter relay pin 3

Starting System — original illustration 1, reference 676Original colors & callouts · Select to enlarge

BJB starter relay pin 5

Starting System — original illustration 2, reference 676Original colors & callouts · Select to enlarge

Did the starter engage and the engine crank?

Yes	INSTALL a new starter relay.
No	GO to A16

A16 CHECK THE BATTERY GROUND CABLES

Measure:

Positive Lead	Measurement / Action	Negative Lead
		Ground G106
		Ground G108

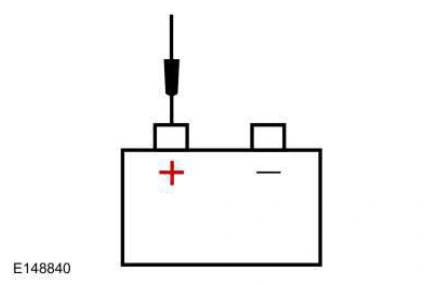

Starting System — original illustration 3, reference 676Original colors & callouts · Select to enlarge

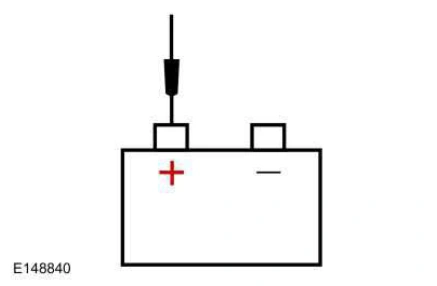

Starting System — original illustration 4, reference 676Original colors & callouts · Select to enlarge

Are the voltages greater than 11 volts?

Yes	GO to A17
No	CLEAN or INSTALL new negative battery cables as necessary. REFER to: Battery Cables - 5.0L 32V Ti-VCT (414-01 Battery, Mounting and Cables, Removal and Installation).

A17 CHECK THE STARTER MOTOR GROUND

Measure:
