Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
Starter motor case |
Is the voltage greater than 11 volts?
Yes | GO to A18 |
|---|---|
No | CLEAN the starter motor mounting flange and MAKE SURE the starter motor is correctly mounted. REFER to: Starter Motor (303-06C Starting System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). |
A18 CHECK THE VOLTAGE TO THE STARTER MOTOR

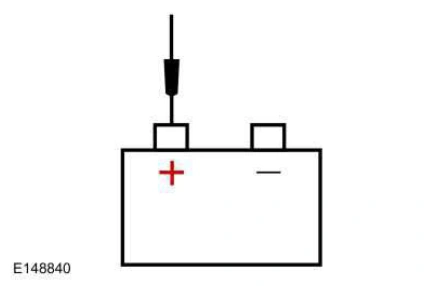

Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C197A-1 ("B" terminal) | Ground |
Is the voltage greater than 11 volts?
Yes | GO to A19 |
|---|---|
No | INSTALL a new positive battery cable. REFER to: Battery Cables - 5.0L 32V Ti-VCT (414-01 Battery, Mounting and Cables, Removal and Installation). |
A19 CHECK THE STARTER MOTOR FOR CORRECT OPERATION
Perform Starter Motor - Positive Circuit Test in this section.
Was an obvious cause found?
Yes | Correct the cause as necessary. |
|---|---|
No | GO to A20 |
A20 CHECK FOR START INPUT AT THE STARTER

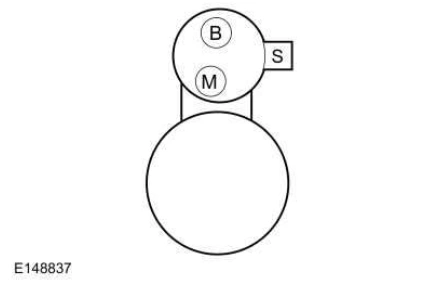

Connect BJB starter relay. Disconnect Starter solenoid C197A. While holding the key in the START position, measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C197C-1 ("S" terminal) | Ground |
Is the voltage greater than 11 volts?
Yes | CLEAN the starter solenoid "S" terminal and starter solenoid connector. CHECK the wiring and the starter motor for a loose or intermittent connection. |
|---|---|
No | REPAIR the circuit for an open. |
A21 CHECK THE PCM (POWERTRAIN CONTROL MODULE) STARTER RELAY CIRCUITS FOR A SHORT TO GROUND
