303-07C Engine Ignition - 5.0L — 2016 workshop reference 695

303-07C Engine Ignition - 5.0L — original illustration 1, reference 695Original colors & callouts · Select to enlarge

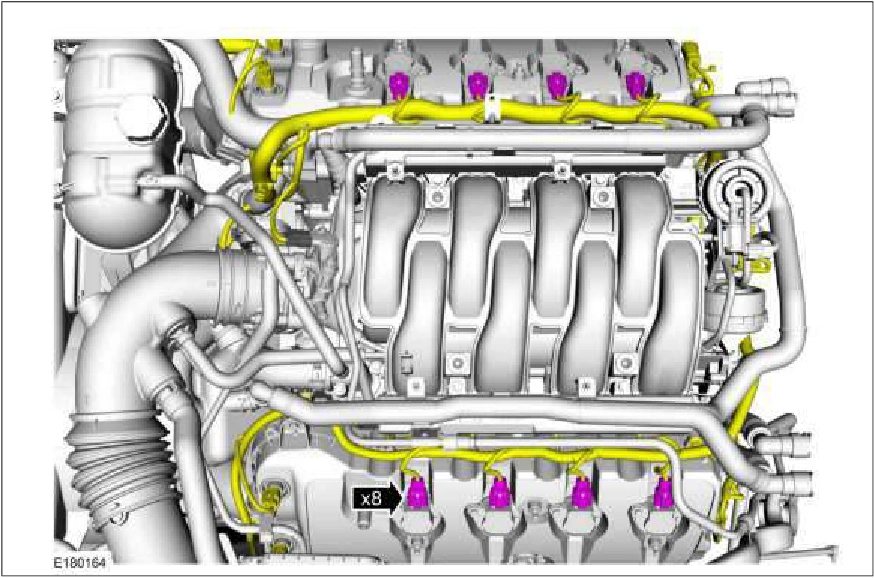

3. Disconnect the ignition coil-on-plug electrical connectors.

303-07C Engine Ignition - 5.0L — original illustration 2, reference 695Original colors & callouts · Select to enlarge

4. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Source reference 695
