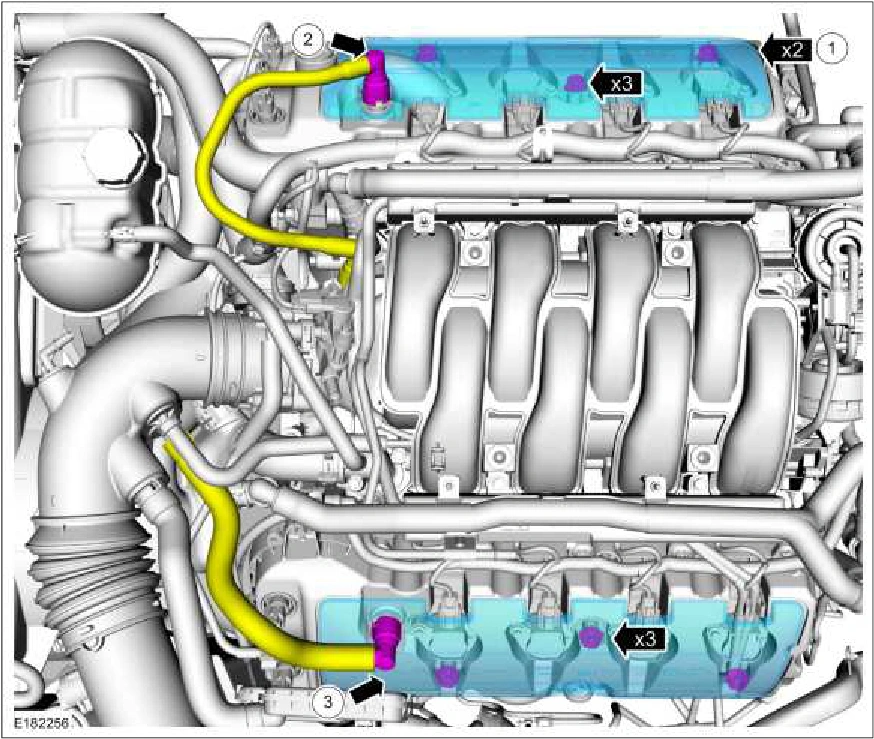

2. Connect the PCV valve quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
3. Connect the crankcase ventilation tube quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
5. NOTE: The engine appearance cover rubber grommets may remain on the engine appearance cover. If so, remove the grommets from the engine appearance cover and install them on the intake manifold before installing the engine appearance cover.
Install the engine appearance cover.
