Installation

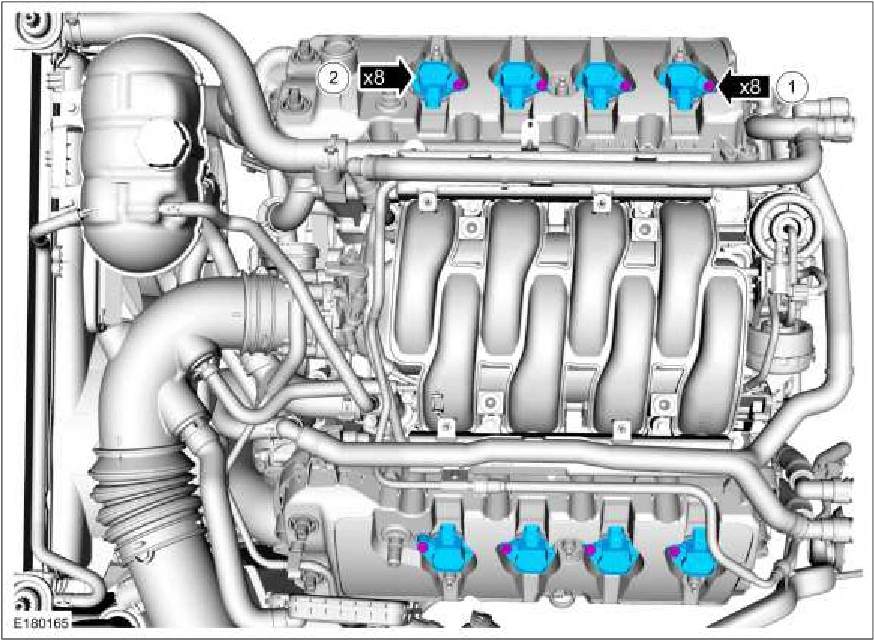

1. Remove the ignition coil-on-plug bolts.

2. Remove the ignition coil-on-plugs.

303-07C Engine Ignition - 5.0L — original illustration 1, reference 696Original colors & callouts · Select to enlarge

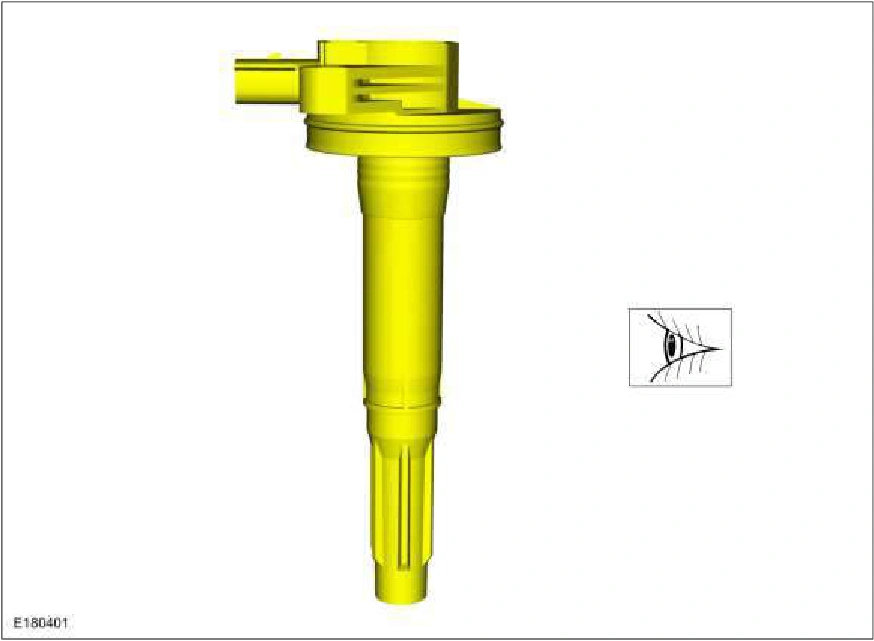

1. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.

303-07C Engine Ignition - 5.0L — original illustration 2, reference 696Original colors & callouts · Select to enlarge
