303-07C Engine Ignition - 5.0L — 2016 workshop reference 697

Step 2

1. Install the ignition coil-on-plugs.

2. Install the ignition coil-on-plug bolts. Torque : Stage 1: 62 lb.in (7 Nm) Stage 2: 45°

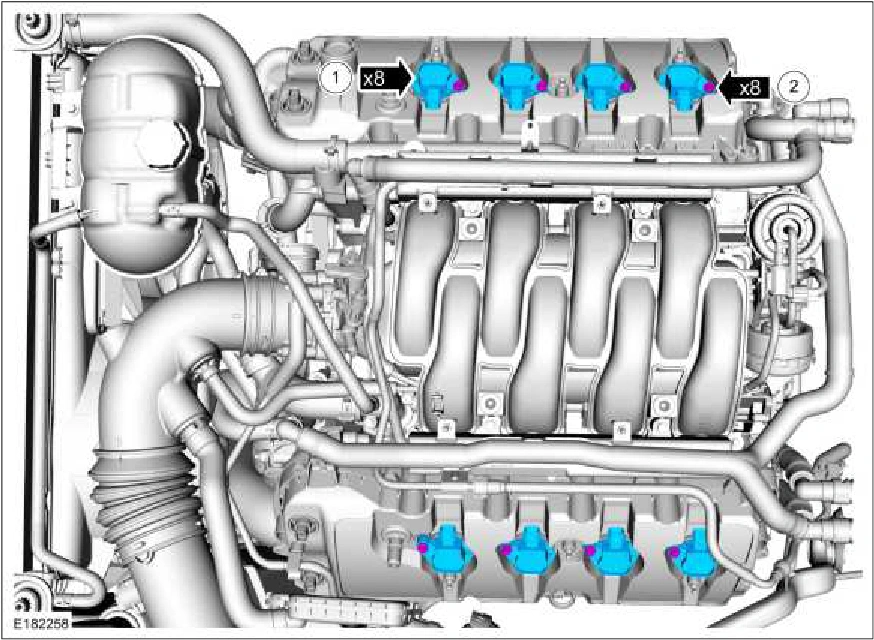

303-07C Engine Ignition - 5.0L — original illustration 1, reference 697Original colors & callouts · Select to enlarge

3. Connect the ignition coil-on-plug electrical connectors.

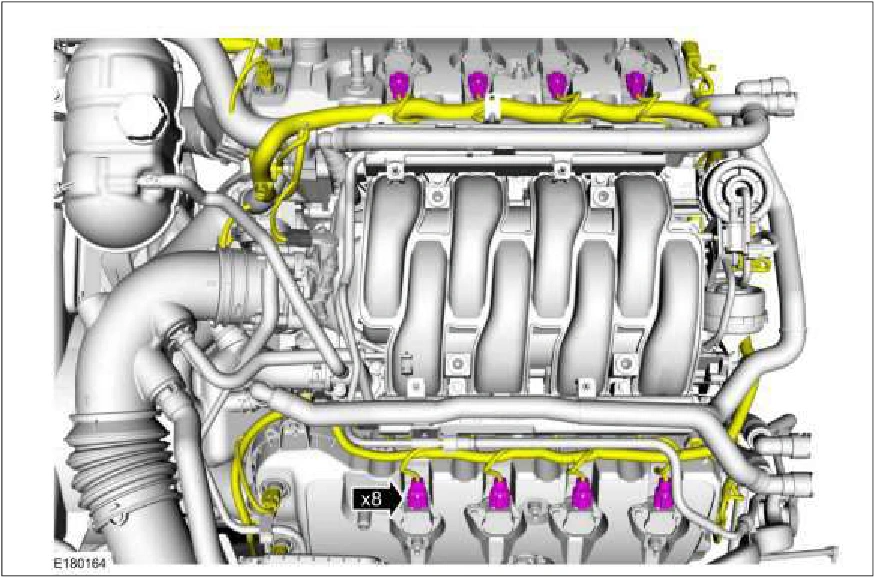

303-07C Engine Ignition - 5.0L — original illustration 2, reference 697Original colors & callouts · Select to enlarge

Step 4

1. Install the ignition coil-on-plug covers.

Source reference 697
