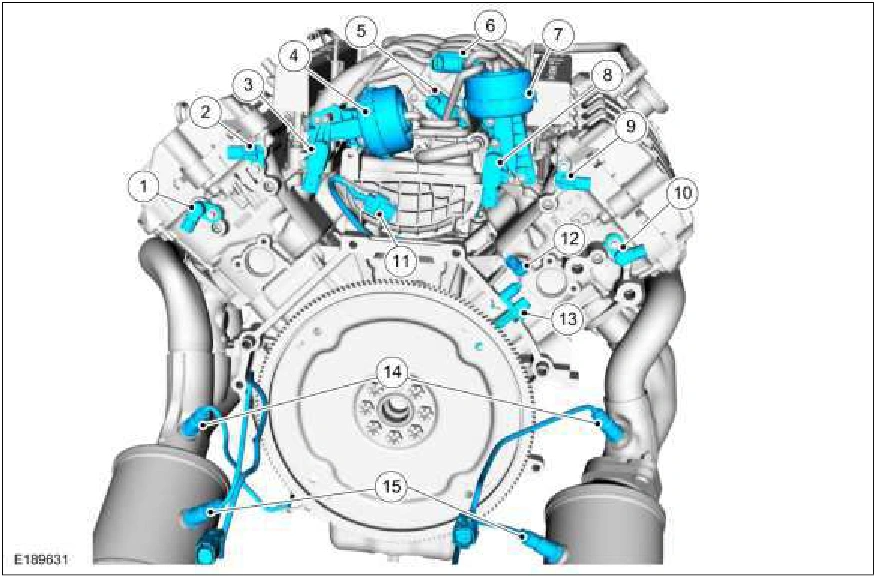

Electronic Engine Controls - Rear
Item | Description |
|---|---|
1 | LH exhaust CMP sensor |
2 | LH intake CMP sensor |
3 | Left hand IMRC position sensor |
4 | Left hand IMRC actuator |
5 | Left hand IMRC solenoid |
6 | Right hand IMRC solenoid |
7 | Right hand IMRC actuator |
8 | Right hand IMRC position sensor |
9 | RH intake CMP sensor |
10 | RH exhaust CMP sensor |
11 | KS |
12 | CHT sensor |
13 | CKP sensor |
14 | HO2S |
15 | Catalyst monitor sensor |
