303-14C Electronic Engine Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Description and Operation

10/27/2015

Electronic Engine Controls - Component Location

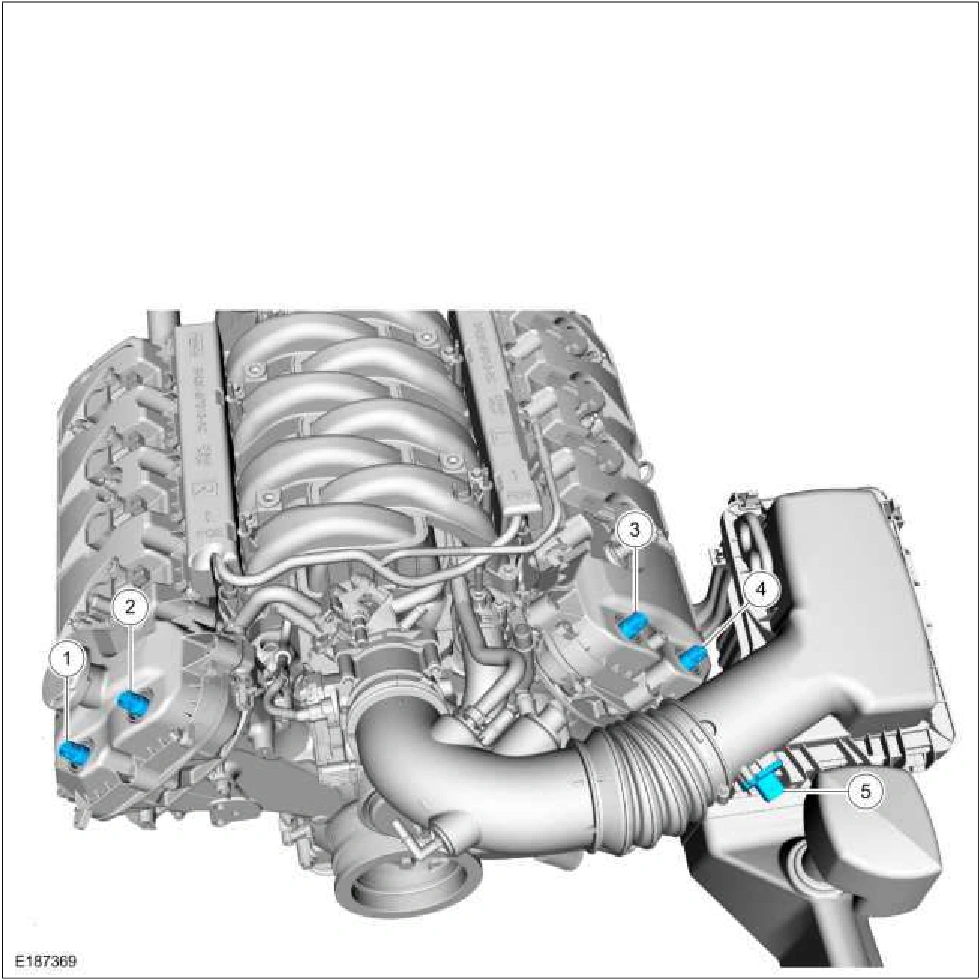

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 730Original colors & callouts · Select to enlarge

Electronic Engine Controls- Front

Item	Description
1	RH exhaust VCT oil control solenoid
2	RH intake VCT oil control solenoid
3	LH intake VCT oil control solenoid
4	LH exhaust VCT oil control solenoid
5	Mass Air Flow (MAF) Intake Air Temperature (IAT) sensor
