303-13C Evaporative Emissions - 5.0L — 2016 workshop reference 728

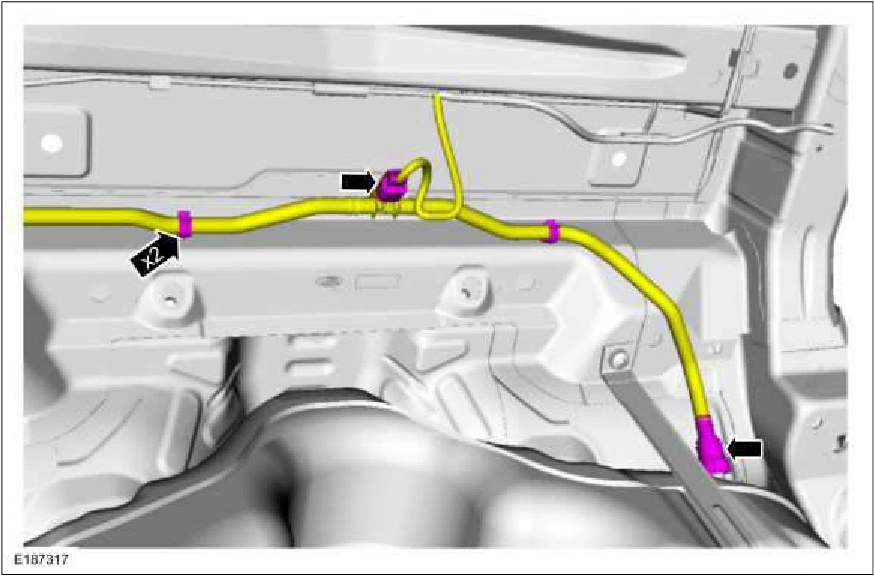

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 728Original colors & callouts · Select to enlarge

5. Disconnect the routing clips.

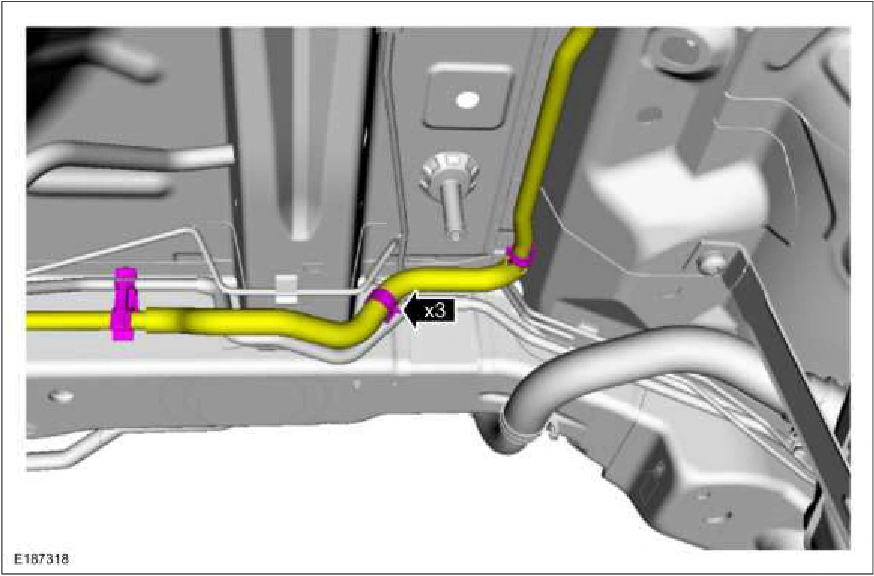

303-13C Evaporative Emissions - 5.0L — original illustration 2, reference 728Original colors & callouts · Select to enlarge

6. Disconnect the quick release coupling and routing clips. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
