Installation

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 729Original colors & callouts · Select to enlarge

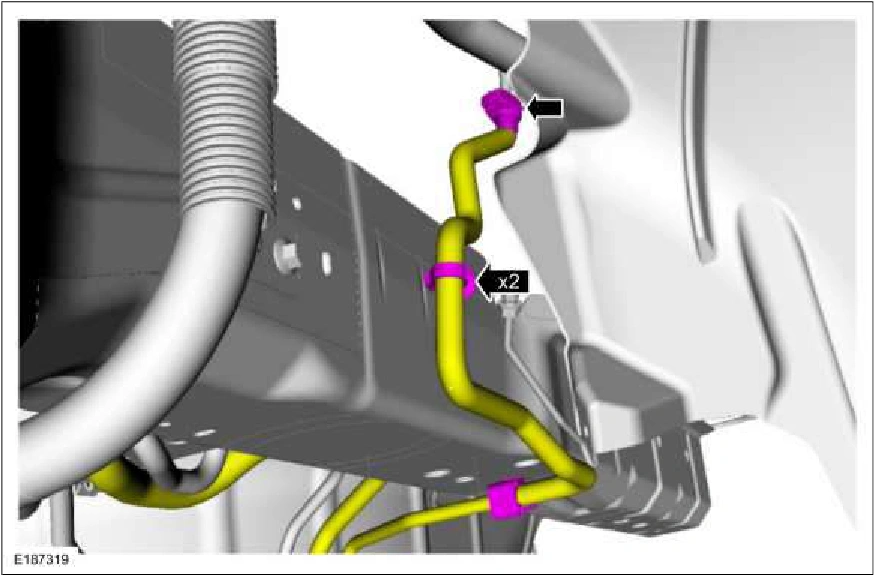

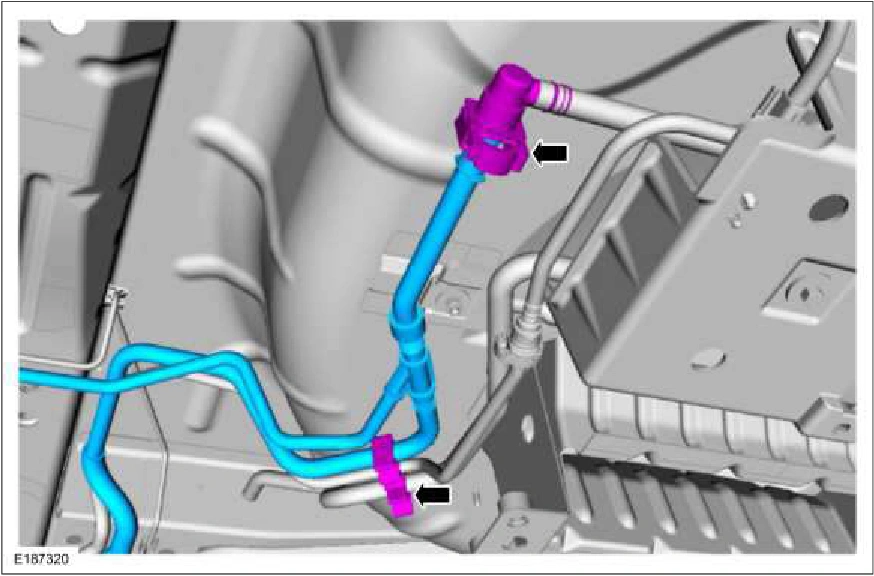

7. Disconnect the quick release coupling and routing clips. Remove the fuel tank pressure sensor and tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

303-13C Evaporative Emissions - 5.0L — original illustration 2, reference 729Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.
